Roof moulding/Roof rail for BMW 3 Series G21 Touring LCI 330dX (2025)

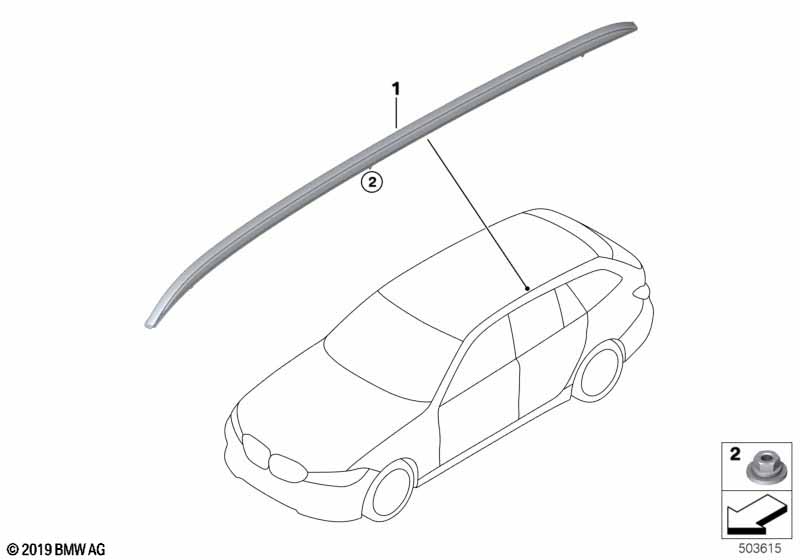

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Roof rail, aluminum, satin finish |
S3ATA=Yes |
|||||||||
| 01 | Roof rails aluminium satinated left | 1 | 51137447851 | Shop at ECS Tuning | ||||||
| 01 | Roof rails aluminium satinated right | 1 | 51137447852 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. roof rail high-gloss Shadow Line |
S3MCA=Yes |
|||||||||
| 01 | Roof rail, black, left | SHADOWLINE | 1 | 51138073211 | Shop at ECS Tuning | |||||
| 01 | Roof rail, black, right | SHADOWLINE | 1 | 51138073212 | Shop at ECS Tuning | |||||
| 02 | Hex nut | 6 | 07147195759 | $1.16 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 330dX Roof moulding/Roof rail?
- This technical diagram illustrates the Roof moulding/Roof rail within the Vehicle trim group for the 3 Series G21 Touring LCI 330dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Roof rails aluminium satinated left (Part #51137447851).
- Which models use the hardware listed in this Roof moulding/Roof rail?
- The hardware and components featured in the Roof moulding/Roof rail are specific to the 3 Series G21 Touring LCI 330dX produced during 2025. These technical specifications ensure that parts like the Roof rails aluminium satinated left (51137447851) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof moulding/Roof rail assembly?
- Each item in the Roof moulding/Roof rail corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 330dX, you can identify the Roof rails aluminium satinated left by locating its position on the schematic, which then links to the official BMW part number 51137447851 for the Vehicle trim section.
