Sealing cap/plug for BMW 7 Series G70 M760eX (2025)

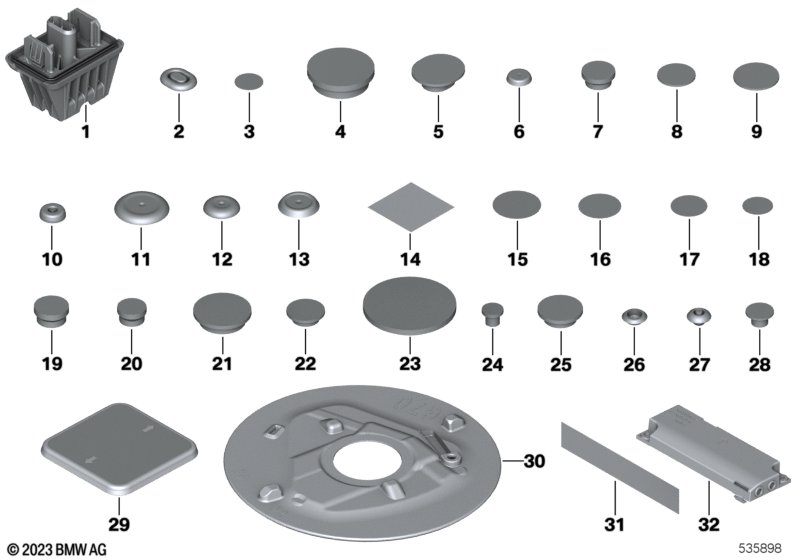

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support lifting platform | 4 | 51719448471 | NoS | Shop at ECS Tuning | |||||
| 02 | Blind plug | 18X24MM | 1 | 51710588794 | $0.85 | Shop at ECS Tuning | ||||
| 03 | Sealing film | PUR, D=30MM | 1 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=40MM | X | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Sealing plug | 20X25MM | X | 51713402713 | $0.69 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Base seal | D=30MM | X | 07147128618 | $0.87 | Shop at ECS Tuning | ||||
| 09 | Seal and insulation mat | D=35MM | X | 07147128619 | Shop at ECS Tuning | |||||
| 10 | Blind plug | D=9.0MM | X | 07147133560 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=35MM | X | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=25MM | X | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 14 | Protective adhesive film | 50X50MM | X | 07147201962 | Shop at ECS Tuning | |||||
| 15 | Seal and insulation mat | D=39,5 /SCHWARZ | X | 07147392446 | Shop at ECS Tuning | |||||
| 16 | Sealing film, transparent | D=30MM | X | 07147449240 | Shop at ECS Tuning | |||||
| 17 | Sealing film | D=30MM | X | 07147472330 | NoS | Shop at ECS Tuning | ||||
| 18 | Foil | X | 51712578508 | Shop at ECS Tuning | ||||||
| 19 | Paint plugs with hot-melt adhesive ring | D=15MM | X | 07147131128 | Shop at ECS Tuning | |||||
| 20 | Seal plug | D=12MM | X | 07147131129 | $0.49 | Shop at ECS Tuning | ||||
| 21 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 22 | Paint plug | D=20MM | X | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 23 | Blind plug | D=55MM | X | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 24 | Blind plug | D=6,5MM | X | 51718407016 | $0.18 | Shop at ECS Tuning | ||||
| 25 | Paint plug | D=25MM | X | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 26 | Seal plug | D=15MM | X | 07147424260 | Shop at ECS Tuning | |||||
| 27 | Blind plug | D=8MM | X | 07147496187 | Shop at ECS Tuning | |||||
| 28 | Blind plug | D=10MM | X | 51718226004 | $0.23 | Shop at ECS Tuning | ||||
| 29 | Cover for brake cylinder | 1 | 51717363246 | Shop at ECS Tuning | ||||||
| 30 | cover, floor panel rear | 1 | 51719625006 | NoS | Shop at ECS Tuning | |||||
| 31 | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| 32 | Tilger | HFR | 1 | 51719626450 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
