Trim and seals for door, front for BMW 7 Series G70 735i (2025)

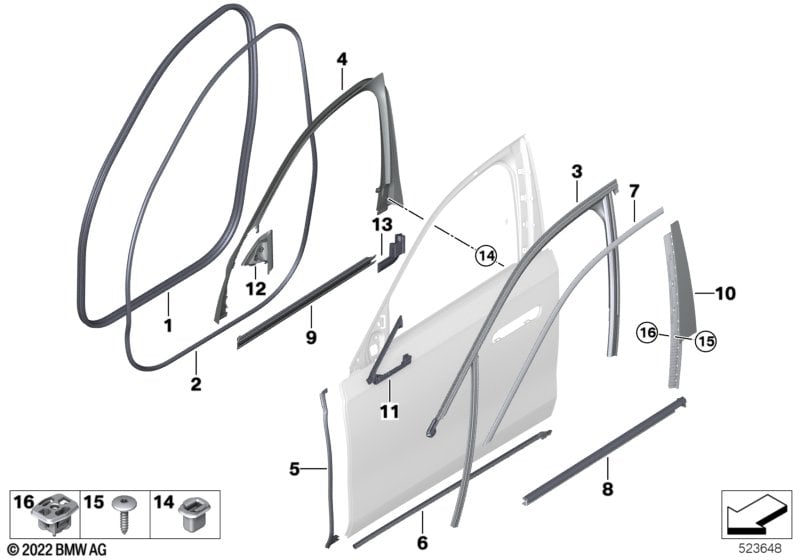

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection front door | ANTHRAZIT | 2 | 51725A36925 | Shop at ECS Tuning | |||||
| 01 | Edge protection front door | ATLASGRAU | 2 | 51725A3D095 | Shop at ECS Tuning | |||||
| 01 | Edge protection front door | NACHTBLAU | 2 | 51725A3D096 | Shop at ECS Tuning | |||||
| 02 | Door weatherstrip | 2 | 51769883236 | Shop at ECS Tuning | ||||||
| 02 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01299883231 | Shop at ECS Tuning | ||||||
| 03 | Window guide left front door | 1 | 51339447423 | Shop at ECS Tuning | ||||||
| 03 | Window guide right front door | 1 | 51339447424 | Shop at ECS Tuning | ||||||
| 04 | Abdeckung Fensterrahmen vorne links | 1 | 51335A2F9C7 | Shop at ECS Tuning | ||||||
| 04 | Abdeckung Fensterrahmen vorne rechts | 1 | 51335A2F9C8 | Shop at ECS Tuning | ||||||
| 05 | Seal A-pillar, front left | 1 | 51769447435 | Shop at ECS Tuning | ||||||
| 05 | Seal A-pillar, front right | 1 | 51769447436 | Shop at ECS Tuning | ||||||
| 06 | Dichtung Einstieg vorne links | 1 | 51769447439 | Shop at ECS Tuning | ||||||
| 06 | Dichtung Einstieg vorne rechts | 1 | 51769447440 | Shop at ECS Tuning | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 07 | Window frame cover, front left door | SHADOWLINE | 1 | 51339447487 | Shop at ECS Tuning | |||||
| 07 | Window frame trim front door right | SHADOWLINE | 1 | 51339447488 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 07 | Window frame cover, front left door | CHROM | 1 | 51339447485 | Shop at ECS Tuning | |||||
| 07 | Window frame trim front door right | CHROM | 1 | 51339447486 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 08 | Channel cover,exterior,door, front left | SHADOWLINE | 1 | 51339447505 | Shop at ECS Tuning | |||||
| 08 | Channel cover,exterior,door, front right | SHADOWLINE | 1 | 51339447506 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 08 | Channel cover,exterior,door, front left | CHROM | 1 | 51339447503 | Shop at ECS Tuning | |||||
| 08 | Channel cover,exterior,door, front right | CHROM | 1 | 51339447504 | Shop at ECS Tuning | |||||
| 09 | Shaft cover inner left | 1 | 51339447429 | Shop at ECS Tuning | ||||||
| 09 | Shaft cover inner right | 1 | 51339447430 | Shop at ECS Tuning | ||||||
| 10 | B-pillar trim panel front door left | SHADOWLINE | 1 | 51339447519 | Shop at ECS Tuning | |||||
| 10 | Cover, column B, door, front right | SHADOWLINE | 1 | 51339447520 | Shop at ECS Tuning | |||||
| 11 | Seal mirror triangle outer left | 1 | 51339447535 | Shop at ECS Tuning | ||||||
| 11 | Seal mirror triangle outer right | 1 | 51339447536 | Shop at ECS Tuning | ||||||
| 12 | Mirror triangle cover left | 1 | 51335A2F9D1 | Shop at ECS Tuning | ||||||
| 12 | Mirror triangle cover right | 1 | 51335A2F9D2 | Shop at ECS Tuning | ||||||
| 13 | Seal end plate B-pillar left | 1 | 51139883213 | Shop at ECS Tuning | ||||||
| 13 | Seal end plate B-pillar right | 1 | 51139883214 | Shop at ECS Tuning | ||||||
| 14 | Plug-in attachment with sealing disk | 4 | 51416991309 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip B-pillar trim panel | 8 | 07145A013C0 | Shop at ECS Tuning | ||||||
