Glove box for BMW XM G09 XM (2025)

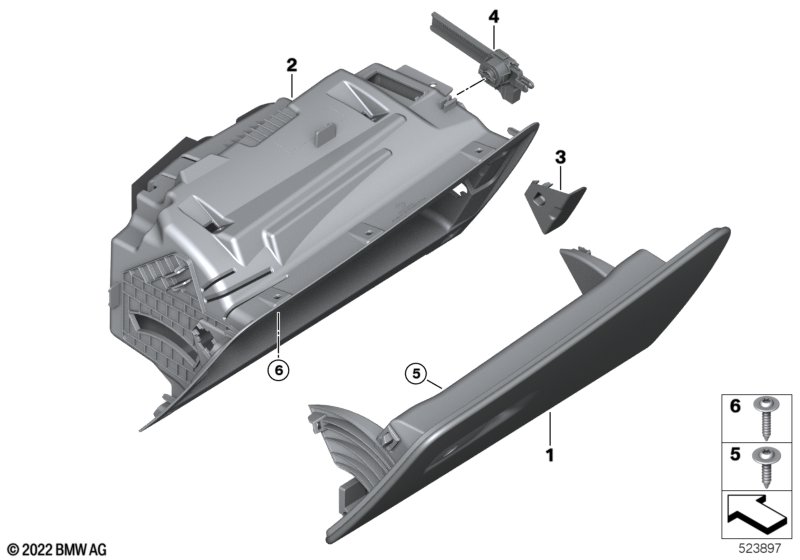

This Glove box technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Individual leather Sakhir Orange |
VCDA=Yes |
|||||||||
| 01 | Glove compartment lid | SAKHIR ORANGE | 1 | 51165A530B9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Ind.leather w/lux.Silverst.II |
VDA9=Yes |
|||||||||
| 01 | Glove compartment lid | SILVERSTONE | 1 | 51165A530C1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Ind. leather Merino/deep lagoon |
VDIP=Yes |
|||||||||
| 01 | Glove compartment lid | DEEP LAGOON | 1 | 51165A530C3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather black or Luxury leather Merino Fiona Red/Black |
VCSW=Yes VDHZ=Yes |
|||||||||
| 01 | Glove compartment lid | SCHWARZ | 1 | 51165A530B7 | NoS | Shop at ECS Tuning | ||||
| 02 | Glove box housing | 1 | 51169472085 | NoS | Shop at ECS Tuning | |||||
| 03 | Glove box locking mechanism | 2 | 51169472100 | NoS | Shop at ECS Tuning | |||||
| 04 | Glove box damper | 1 | 51169472101 | NoS | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | DELTA PT4X16 | 3 | 07149197038 | Shop at ECS Tuning | |||||
| 06 | Oval-head screw with washer | DELTA PT4X20 | 7 | 07149185673 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
