Door window lifting mechanism rear for BMW 7 Series G70 740i

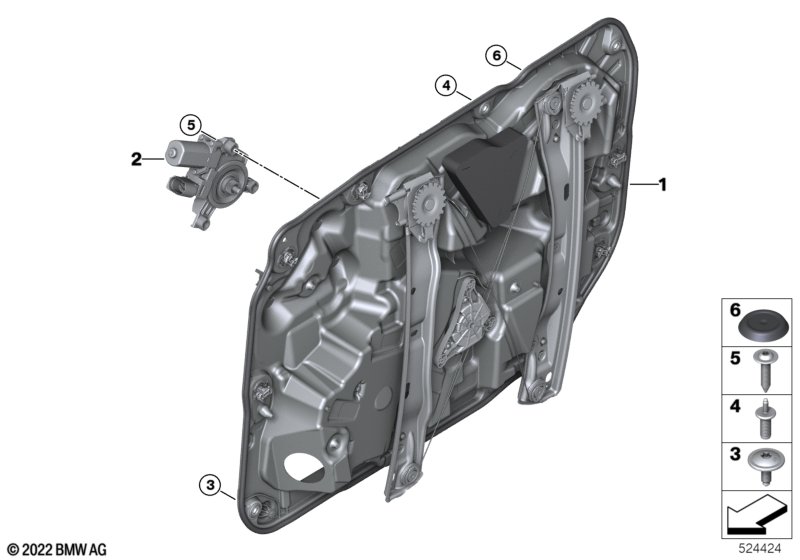

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support rear door left | 1 | 51355A36297 | Shop at ECS Tuning | ||||||
| 01 | Support right rear door | 1 | 51355A36298 | Shop at ECS Tuning | ||||||
| 02 | Drive, power window left | 1 | 67625A142D1 | Shop at ECS Tuning | ||||||
| 02 | Drive power window right | 1 | 67625A142D2 | Shop at ECS Tuning | ||||||
| 02 | Drive, power window left | 1 | 67625A84FB7 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, right | 1 | 67625A84FB8 | Shop at ECS Tuning | ||||||
| 03 | Torx bolt | ISA M5X12 | 12 | 07148493008 | Shop at ECS Tuning | |||||
| 04 | Torx screw | 2 | 07145A17AC9 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt for plastic material | ISA L=22MM | 3 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=25MM | 4 | 51717175886 | $0.63 | Shop at ECS Tuning |
