Trim cover, front for BMW 3 Series G20 Sedan LCI 320i (2025)

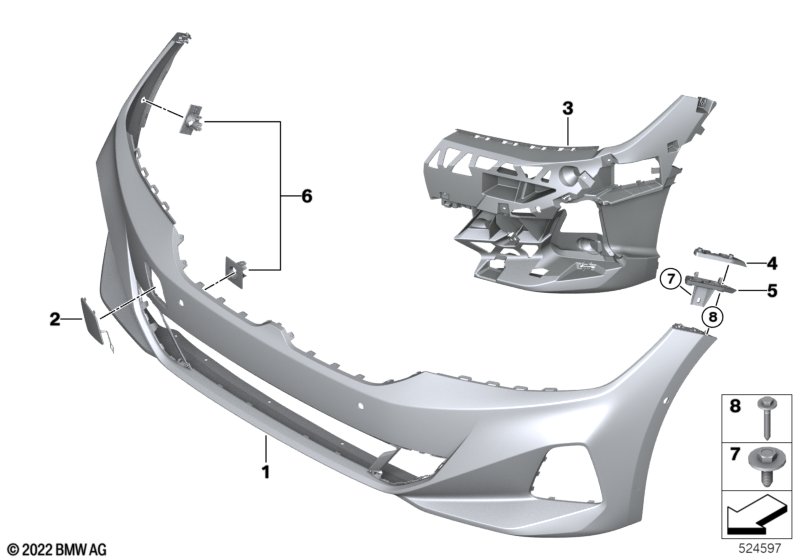

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | BASIC PDC/PMA | 1 | 51115A695E2 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | BASIC PDC/PMA | 1 | 51115A695E2 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | BASIC PDC/PMA | 1 | 51115A695E2 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=No |
|||||||||
| 01 | Bumper cover primed front | BASIC PDC | 1 | 51115A695E1 | Shop at ECS Tuning | |||||
| 02 | Cover for towing eye primed | BASIC | 1 | 51115A69623 | Shop at ECS Tuning | |||||
| 03 | Mount left | 1 | 51115A1BF61 | Shop at ECS Tuning | ||||||
| 03 | Mount right | 1 | 51115A1BF62 | Shop at ECS Tuning | ||||||
| 04 | Bumper guide, left upper | 1 | 51117422249 | Shop at ECS Tuning | ||||||
| 04 | Bumper guide, right upper | 1 | 51117422250 | Shop at ECS Tuning | ||||||
| 05 | Guide bumper, left lower | 1 | 51117422251 | Shop at ECS Tuning | ||||||
| 05 | Bumper guide right lower | 1 | 51117422252 | Shop at ECS Tuning | ||||||
| 06 | Kit mount PDC/PMA sensor | BASIC | 1 | 51115A69609 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 08 | Screw | TS5X35 SW8 D=15 | 6 | 07129907535 | Shop at ECS Tuning | |||||
