Trim, decor elements, front for BMW 3 Series G20 Sedan LCI 330i (2025)

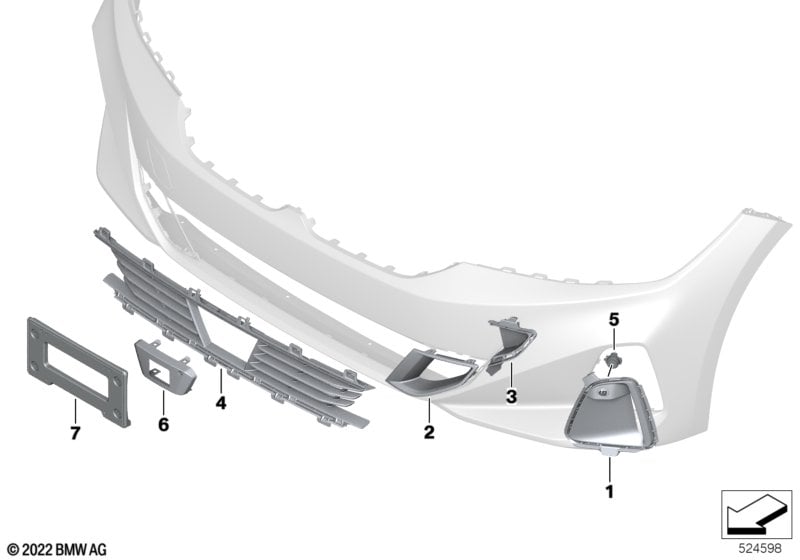

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| 01 | Trim air inlet outer left | 1 | 51115A1BFC7 | Shop at ECS Tuning | ||||||
| 01 | Trim air inlet outer right | 1 | 51115A1BFC8 | Shop at ECS Tuning | ||||||
| 02 | Trim air inlet center left | 1 | 51115A1BFC5 | Shop at ECS Tuning | ||||||
| 02 | Trim air inlet center right | 1 | 51115A1BFC6 | Shop at ECS Tuning | ||||||
| 03 | Cover, air inlet, left | 1 | 51115A25CE1 | Shop at ECS Tuning | ||||||
| 03 | Cover, air inlet, right | 1 | 51115A25CE2 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=No S5DFA=Yes |
|||||||||
| 04 | Grill, air intake, center | LINES MRR | 1 | 03/2026 | 51117464198 | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=Yes S5DFA=No |
|||||||||
| 04 | Grill, air intake, center | LINES FRR | 1 | 51117464260 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=No S5DFA=No |
|||||||||
| 04 | Grill, air intake, center | LINES | 1 | 03/2026 | 51117464258 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 05 | Dummy plug black | PDC | 2 | 51115A33E83 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=No S5DFA=Yes |
|||||||||
| 06 | Cover | MRR | 1 | 03/2026 | 51117478822 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | License-plate carrier front | US/JAP | 1 | 51115A1BF79 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330i Trim, decor elements, front?
- This technical diagram illustrates the Trim, decor elements, front within the Vehicle trim group for the 3 Series G20 Sedan LCI 330i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Trim air inlet outer left (Part #51115A1BFC7).
- Which models use the hardware listed in this Trim, decor elements, front?
- The hardware and components featured in the Trim, decor elements, front are specific to the 3 Series G20 Sedan LCI 330i produced during 2025. These technical specifications ensure that parts like the Trim air inlet outer left (51115A1BFC7) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim, decor elements, front assembly?
- Each item in the Trim, decor elements, front corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330i, you can identify the Trim air inlet outer left by locating its position on the schematic, which then links to the official BMW part number 51115A1BFC7 for the Vehicle trim section.
