Outside mirror for BMW XM G09 XM (2025)

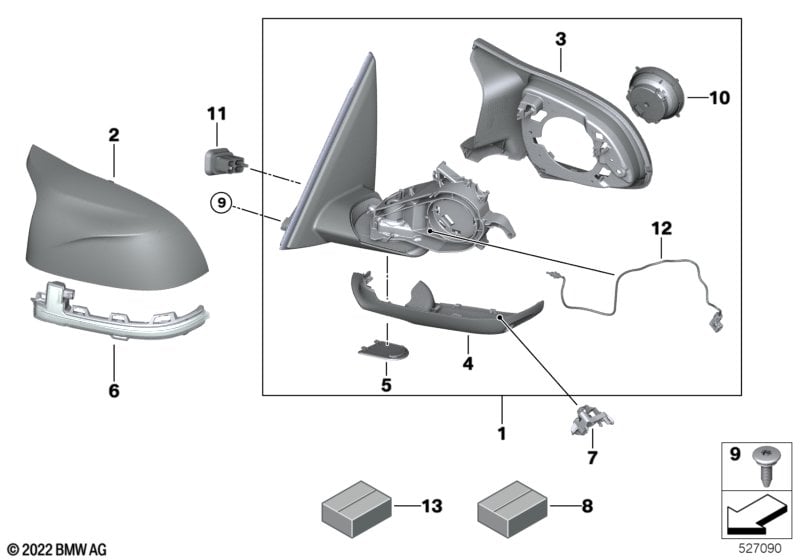

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 01 | Exterior mirror top view left | 1 | 51165A45B33 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror top view right | 1 | 51165A45B34 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Kit camera holder exterior mirror | 1 | 51165A45B48 | Shop at ECS Tuning | ||||||
| -- | Torx screw with washer | ISA M6X17 | 3 | 07146961019 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 01 | Ext.mirror Act.Blind Spot Detection left | 1 | 51165A45B35 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Ex.mirror Act.Blind Spot Detection right | 1 | 51165A45B36 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Kit camera holder exterior mirror | 1 | 51165A45B48 | Shop at ECS Tuning | ||||||
| -- | Torx screw with washer | ISA M6X17 | 3 | 07146961019 | $0.47 | Shop at ECS Tuning | ||||
| 02 | Cover cap, primed, left | 1 | 51168097351 | Shop at ECS Tuning | ||||||
| 02 | Cover cap, primed, right | 1 | 51168097352 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring left | 1 | 51168071003 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 03 | Supporting ring right | 1 | 51168071004 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| 04 | Lower housing section camera right | SHADOW-LINE | 1 | 51165A45B54 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 04 | Lower housing section camera left | SHADOW-LINE | 1 | 51165A45B53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| 05 | Set of mirror base caps | 1 | 51168496625 | Shop at ECS Tuning | ||||||
| 06 | Auxiliary turn signal, mirror, left | 1 | 63137441439 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 06 | Auxiliary turn signal, mirror, right | 1 | 63137441440 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| 07 | Kit camera holder exterior mirror | 1 | 51165A45B48 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| 09 | Torx screw with washer | ISA M6X17 | 6 | 07146961019 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51168496627 | Shop at ECS Tuning | ||||||
| 11 | Connector housing exterior mirror | 2 | 61135A13111 | Shop at ECS Tuning | ||||||
| 12 | Wiring harness base | 2 | 51167441438 | Shop at ECS Tuning | ||||||
| 12 | Wiring harness camera | 2 | 67135A05A09 | Shop at ECS Tuning | ||||||
| 13 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
