Exterior mirror (S760A) for BMW 1 Series F40 116i

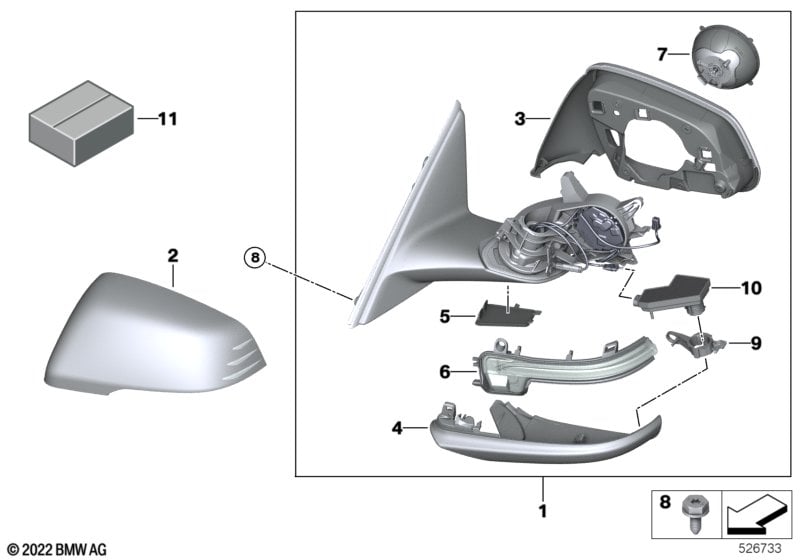

This Exterior mirror (S760A) technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with High gloss shadow line |
S760A=Yes |
||||||||
| For vehicles with Driving Assistant and High gloss shadow line |
S5ASA=Yes S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory,right | SHADOW-LINE | 1 | 07/2021 | 51169448510 | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip and Light package and Driving Assistant and High gloss shadow line |
S430A=Yes S563A=No S5ASA=Yes S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51169448509 | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip and Light package and Driving Assistant and High gloss shadow line |
S430A=Yes S563A=No S5ASA=No S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51169448503 | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip and Light package and Driving Assistant and High gloss shadow line |
S430A=Yes S563A=Yes S5ASA=Yes S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51168738917 | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip and Light package and Driving Assistant and High gloss shadow line |
S430A=Yes S563A=Yes S5ASA=No S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51168738853 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Driving Assistant and High gloss shadow line |
S313A=Yes S459A=Yes S45AA=Yes S5ASA=No S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory,right | SHADOW-LINE | 1 | 07/2021 | 51169448498 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Driving Assistant and High gloss shadow line |
S313A=No S430A=No S459A=No S45AA=No S5ASA=No S760A=Yes |
|||||||||
| 01 | heated outside mirror, right | SHADOW-LINE | 1 | 07/2021 | 51169448490 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Light package and Driving Assistant and High gloss shadow line |
S313A=Yes S430A=No S459A=Yes S45AA=Yes S563A=Yes S5ASA=No S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51168738837 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Light package and Driving Assistant and High gloss shadow line |
S313A=No S430A=No S459A=No S45AA=No S563A=Yes S5ASA=No S760A=Yes |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 07/2021 | 51168738785 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Light package and Driving Assistant and High gloss shadow line |
S313A=No S430A=No S459A=No S45AA=No S563A=No S5ASA=No S760A=Yes |
|||||||||
| 01 | heated outside mirror, left | SHADOW-LINE | 1 | 07/2021 | 51169448489 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Light package and Driving Assistant and High gloss shadow line |
S313A=Yes S430A=No S459A=Yes S45AA=Yes S563A=No S5ASA=No S760A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOW-LINE | 1 | 07/2021 | 51169448497 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Outside mirror cover cap, left, primed | 1 | 07/2021 | 51169879147 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, right, primed | 1 | 07/2021 | 51169879148 | Shop at ECS Tuning | |||||
| 03 | Supporting ring, bright-black left | SHADOW-LINE | 1 | 07/2021 | 51169879143 | Shop at ECS Tuning | ||||
| 03 | Supporting ring, bright-black right | SHADOW-LINE | 1 | 07/2021 | 51169879144 | Shop at ECS Tuning | ||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 07/2021 | 51169879136 | Shop at ECS Tuning | ||||
| For vehicles with Light package and High gloss shadow line |
S563A=Yes S760A=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 07/2021 | 51169879139 | Shop at ECS Tuning | ||||
| For vehicles with Light package and High gloss shadow line |
S563A=No S760A=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 07/2021 | 51169879135 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Set of covers mirror baseplate | 1 | 07/2021 | 51169883906 | Shop at ECS Tuning | |||||
| 06 | Auxiliary turn signal, mirror, left | 1 | 07/2021 | 51169879127 | Shop at ECS Tuning | |||||
| 06 | Auxiliary turn signal, mirror, right | 1 | 07/2021 | 51169879128 | Shop at ECS Tuning | |||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Driving Assistant and High gloss shadow line |
S313A=Yes S430A=Yes S459A=Yes S5ASA=Yes S760A=Yes |
|||||||||
| 07 | Drive, outside Memory mirror | 2 | 07/2021 | 67137337847 | Shop at ECS Tuning | |||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Driving Assistant and High gloss shadow line |
S313A=No S430A=No S459A=No S45AA=No S5ASA=No S760A=Yes |
|||||||||
| 07 | Drive, outside mirror right | 1 | 07/2021 | 67137337844 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 08 | Hexagon screw, self-threading | M6X19 | 6 | 07/2021 | 07147482347 | Shop at ECS Tuning | ||||
| For vehicles with Light package and High gloss shadow line |
S563A=Yes S760A=Yes |
|||||||||
| 09 | Bracket set, light module | 1 | 07/2021 | 51169883907 | Shop at ECS Tuning | |||||
| 10 | Light module, left | 1 | 07/2021 | 63178497455 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 11 | Repair kit cable exterior mirror | 1 | 07/2021 | 61359853372 | Shop at ECS Tuning | |||||
