Door trim panel, front for BMW XM G09 XM (2025)

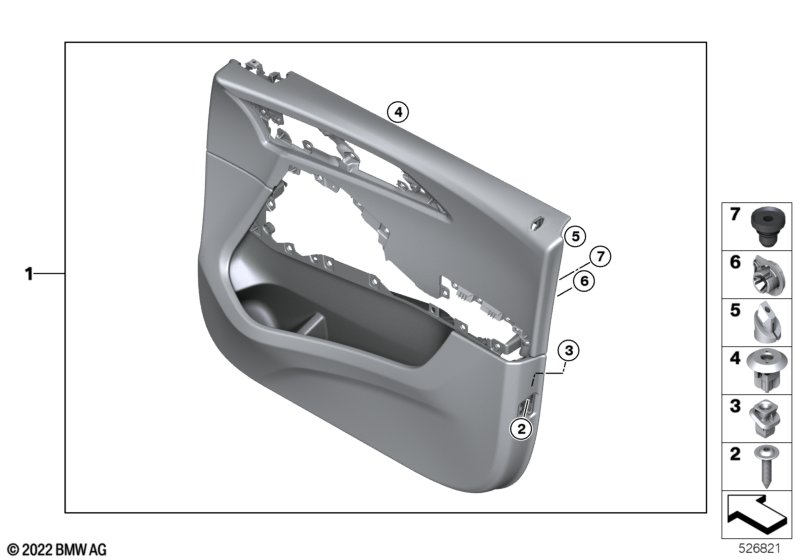

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Luxury leather Merino Fiona Red/Black |
VDHZ=Yes |
|||||||||
| 01 | Left front door trim panel | SW / ORANGE | 1 | 51415A68673 | NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel | SW / ORANGE | 1 | 51415A68674 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather Sakhir Orange |
VCDA=Yes |
|||||||||
| 01 | Left front door trim panel | SAKHIR ORANGE | 1 | 51415A68665 | NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel | SAKHIR ORANGE | 1 | 51415A68666 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Ind. leather Merino/deep lagoon |
VDIP=Yes |
|||||||||
| 01 | Left front door trim panel | DEEP LAGOON | 1 | 51415A685E3 | NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel | DEEP LAGOON | 1 | 51415A685E4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather black or BMW Ind. leather w/luxury leather black |
VCSW=Yes VDSW=Yes |
|||||||||
| 01 | Left front door trim panel | SCHWARZ | 1 | 51415A68667 | NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel | SCHWARZ | 1 | 51415A68668 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Indiv. Silverstone Merino Leather II or BMW Ind.leather w/lux.Silverst.II |
VCA9=Yes VDA9=Yes |
|||||||||
| 01 | Left front door trim panel | SILVERSTONE | 1 | 51415A68671 | NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel | SILVERSTONE | 1 | 51415A68672 | NoS | Shop at ECS Tuning | ||||
| 02 | Torx-bolt for plastic material | ISA L=25MM | 12 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Plug-in nut | 1,2 MM | 6 | 51419483759 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | 2 | 07147265039 | Shop at ECS Tuning | ||||||
| 05 | Nut | 1,2MM | 2 | 07149471799 | Shop at ECS Tuning | |||||
| 06 | Clip | 9 | 07149462118 | Shop at ECS Tuning | ||||||
| 07 | Rubber buffer | 9 | 51414A1EE49 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
