Surface-mounted parts, door panel, front for BMW XM G09 XM (2025)

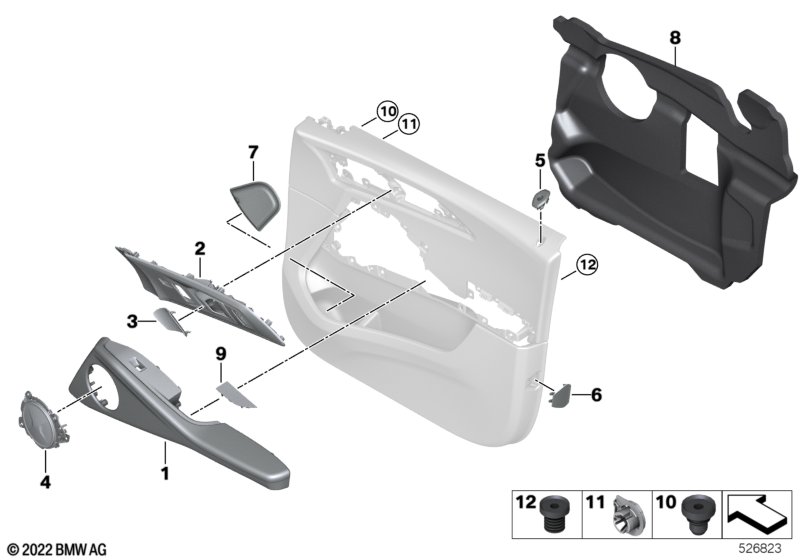

This Surface-mounted parts, door panel, front technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Luxury leather Merino Fiona Red/Black |
VDHZ=Yes |
|||||||||
| 01 | Armrest left front | SW / ORANGE | 1 | 51415A686C7 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest right front | SW / ORANGE | 1 | 51415A686C8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather Sakhir Orange |
VCDA=Yes |
|||||||||
| 01 | Armrest left front | SAKHIR ORANGE | 1 | 51415A686C1 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest right front | SAKHIR ORANGE | 1 | 51415A686C2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Ind. leather Merino/deep lagoon |
VDIP=Yes |
|||||||||
| 01 | Armrest left front | DEEP LAGOON | 1 | 51415A686B5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest right front | DEEP LAGOON | 1 | 51415A686B6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather black or BMW Ind. leather w/luxury leather black |
VCSW=Yes VDSW=Yes |
|||||||||
| 01 | Armrest left front | SCHWARZ | 1 | 51415A686C3 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest right front | SCHWARZ | 1 | 51415A686C4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Indiv. Silverstone Merino Leather II or BMW Ind.leather w/lux.Silverst.II |
VCA9=Yes VDA9=Yes |
|||||||||
| 01 | Armrest left front | SILVERSTONE | 1 | 51415A686C5 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest right front | SILVERSTONE | 1 | 51415A686C6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Massage function, driver / fr. passenger |
S4T7A=No |
|||||||||
| 02 | Accent molding, front left | 1 | 51415A870C1 | NoS | Shop at ECS Tuning | |||||
| 02 | Accent molding, front right | 1 | 51415A870C8 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Massage function, driver / fr. passenger |
S4T7A=Yes |
|||||||||
| 02 | Accent molding, front left | 1 | 51415A870C3 | NoS | Shop at ECS Tuning | |||||
| 02 | Accent molding, front right | 1 | 51415A870C6 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim screw point | 1 | 51425A0D131 | NoS | Shop at ECS Tuning | |||||
| 03 | Trim screw point | 1 | 51425A0D132 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=No |
|||||||||
| 04 | Speaker trim left | TITAN II DUNKEL | 1 | 51425A32BF7 | NoS | Shop at ECS Tuning | ||||
| 04 | Speaker trim right | TITAN II DUNKEL | 1 | 51425A32BF8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 04 | Speaker trim left | PERLGLANZ CHROM | 1 | 51165A012E1 | NoS | Shop at ECS Tuning | ||||
| 04 | Speaker trim right | PERLGLANZ CHROM | 1 | 51165A012E2 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover, locking button | 2 | 51415A011F0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with BMW Individual leather Sakhir Orange |
VCDA=Yes |
|||||||||
| 06 | Cover screw point | SAKHIR ORANGE | 2 | 51415A36A54 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Ind. leather Merino/deep lagoon |
VDIP=Yes |
|||||||||
| 06 | Cover screw point | DEEP LAGOON | 2 | 51415A36A55 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Indiv. Silverstone Merino Leather II or BMW Ind.leather w/lux.Silverst.II |
VCA9=Yes VDA9=Yes |
|||||||||
| 06 | Cover screw point | SILVERSTONE | 2 | 51415A36A53 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Individual leather black or Luxury leather Merino Fiona Red/Black or BMW Ind. leather w/luxury leather black |
VCSW=Yes VDHZ=Yes VDSW=Yes |
|||||||||
| 06 | Cover screw point | SCHWARZ | 2 | 51415A36A56 | NoS | Shop at ECS Tuning | ||||
| 08 | Acoustic fleece | 2 | 51415A01221 | NoS | Shop at ECS Tuning | |||||
| For vehicles with BMW Ind.leather w/lux.Silverst.II or BMW Ind. leather Merino/deep lagoon or BMW Ind. leather w/luxury leather black or Lthr Merino/vlvt csh ex. Bic. Night Blue |
VDA9=Yes VDIP=Yes VDSW=Yes VFI4=Yes |
|||||||||
| 09 | Cover armrest slide cover door left | COFFEE | 1 | 51415A36AA3 | NoS | Shop at ECS Tuning | ||||
| 09 | Cover armrest slide cover door right | COFFEE | 1 | 51415A36AA4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Indiv. Silverstone Merino Leather II or BMW Individual leather Sakhir Orange or BMW Individual leather black or Luxury leather Merino Fiona Red/Black |
VCA9=Yes VCDA=Yes VCSW=Yes VDHZ=Yes |
|||||||||
| 09 | Cover armrest slide cover door left | SCHWARZ | 1 | 51415A36AA1 | NoS | Shop at ECS Tuning | ||||
| 09 | Cover armrest slide cover door right | SCHWARZ | 1 | 51415A36AA2 | NoS | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 1 | 51414A1EE49 | NoS | Shop at ECS Tuning | |||||
| 11 | Clip | 9 | 07149462118 | Shop at ECS Tuning | ||||||
| 12 | Stop buffer | 9 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
