Storage tray, center console for BMW 2 Series G87 M2 M2 (2024)

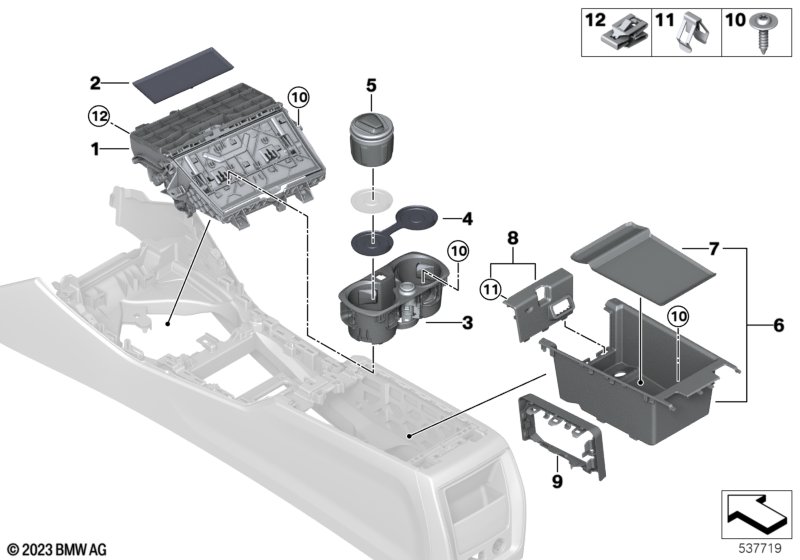

This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 2 Series G87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Compare position 01 storage compartment with the variant installed in the vehicle (WCA/NFC see addition). |
|||||||||
| For vehicles with Manual Transmission |
S2MAA=Yes |
|||||||||
| 01 | Storage compartment center console front | 1 | 51165A55207 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Comfort access and Storage tray for wireless charging |
S2MAA=No S322A=Yes S6NXA=Yes |
|||||||||
| 01 | Storage compartment center console front | WCA/NFC | 1 | 51165A55209 | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Comfort access and Storage tray for wireless charging |
S2MAA=No S322A=Yes S6NXA=No |
|||||||||
| 01 | Storage compartment center console front | WCA/NFC | 1 | 51165A55209 | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Comfort access and Storage tray for wireless charging |
S2MAA=No S322A=No S6NXA=Yes |
|||||||||
| 01 | Storage compartment center console front | WCA/NFC | 1 | 51165A55209 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission and Comfort access and Storage tray for wireless charging |
S2MAA=No S322A=No S6NXA=No |
|||||||||
| 01 | Storage compartment center console front | 1 | 51165A55208 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
S2MAA=No |
|||||||||
| 02 | Insert mat, compartment, front | 1 | 51166806842 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission |
S2MAA=Yes |
|||||||||
| 02 | Insert mat, compartment, front | 1 | 51166806841 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Comfort access and Storage tray for wireless charging |
S2MAA=No S322A=No S6NXA=No |
|||||||||
| 02 | Insert mat, compartment, front | 1 | 51166806842 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
S2MAA=No |
|||||||||
| 03 | Cup holder for storage compartment | 1 | 51166809803 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission |
S2MAA=Yes |
|||||||||
| 03 | Cup holder for storage compartment | 1 | 51166806798 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission |
S2MAA=No |
|||||||||
| 04 | Rubber insert, cup holder | 1 | 51166806844 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
S2MAA=Yes |
|||||||||
| 04 | Rubber insert, cup holder | 2 | 51166992044 | NoS | Shop at ECS Tuning | |||||
| 06 | Oddments tray, center armrest | 1 | 51166806852 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=Yes S6NXA=No |
|||||||||
| 06 | Oddments tray, center armrest | 1 | 51166806852 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=No S6NXA=Yes |
|||||||||
| 06 | Oddments tray, center armrest | 1 | 51166806852 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=No S6NXA=No |
|||||||||
| 06 | Oddments tray, center armrest | 1 | 51166806852 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=Yes S6NXA=Yes |
|||||||||
| 06 | Oddments tray, center armrest | 1 | 51166806850 | NoS | Shop at ECS Tuning | |||||
| 07 | Insert mat, center armrest storage bin | 1 | 51166806851 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=Yes S6NXA=No |
|||||||||
| 07 | Insert mat, center armrest storage bin | 1 | 51166806851 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=No S6NXA=Yes |
|||||||||
| 07 | Insert mat, center armrest storage bin | 1 | 51166806851 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=No S6NXA=No |
|||||||||
| 07 | Insert mat, center armrest storage bin | 1 | 51166806851 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=Yes S6NXA=Yes |
|||||||||
| 07 | Insert mat, center armrest storage bin | 1 | 51166806849 | NoS | Shop at ECS Tuning | |||||
| 08 | Trim, storage compartment | 1 | 51166807232 | Shop at ECS Tuning | ||||||
| For vehicles with Manual Transmission and Storage tray for wireless charging |
S2MAA=Yes S6NXA=Yes |
|||||||||
| 09 | Adapter, center armrest storage bin | 1 | 51169471119 | NoS | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | DELTA PT4X16 | 8 | 07149197038 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 07147124171 | $0.17 | Shop at ECS Tuning | |||||
| 12 | Mounting clip | 2 | 07149365277 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series G87 M2 M2 Storage tray, center console?
- This technical diagram illustrates the Storage tray, center console within the Vehicle trim group for the 2 Series G87 M2 M2 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Storage compartment center console front (Part #51165A55207).
- Which models use the hardware listed in this Storage tray, center console?
- The hardware and components featured in the Storage tray, center console are specific to the 2 Series G87 M2 M2 produced during 2024. These technical specifications ensure that parts like the Storage compartment center console front (51165A55207) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storage tray, center console assembly?
- Each item in the Storage tray, center console corresponds to the numbered list below the illustration. For the 2 Series G87 M2 M2, you can identify the Storage compartment center console front by locating its position on the schematic, which then links to the official BMW part number 51165A55207 for the Vehicle trim section.
