Underhood shield for BMW XM G09 XM (2025)

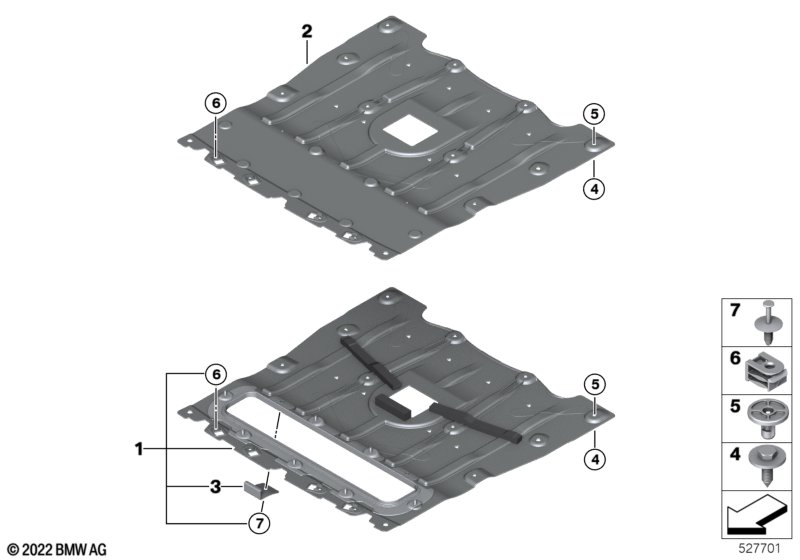

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine compartment shielding front | 1 | 51759451719 | Shop at ECS Tuning | ||||||
| 03 | Engine compartment protection backet | 2 | 51758084512 | NoS | Shop at ECS Tuning | |||||
| 04 | Hex bolt | TS5X20SW10 D=22 | 10 | 07149481168 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | L= 19.9MM | 8 | 07147306224 | Shop at ECS Tuning | |||||
| 06 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 2 | 51118174185 | $0.30 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
