Glazing for BMW XM G09 XM (2025)

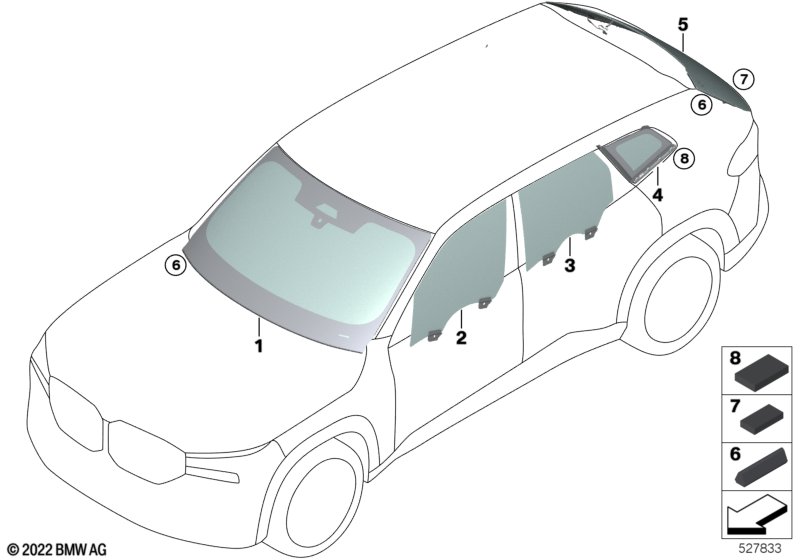

This Glazing technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Driving assistant professional |
L8AAA=No S5AUA=No |
|||||||||
| 01 | Frontscheibe grün Regen/Licht/Beschlags. | ADCAM /HUD | 1 | 51319447332 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional |
L8AAA=Yes S5AUA=No |
|||||||||
| 01 | Frontscheibe grün Regen/Licht/Beschlags. | ADCAM /HUD | 1 | 51319447332 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional |
L8AAA=No S5AUA=Yes |
|||||||||
| 01 | Frontscheibe grün Regen/Licht/Beschlags. | 1 | 51319447333 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving assistant professional |
L8AAA=Yes S5AUA=Yes |
|||||||||
| 01 | Frontscheibe grün Regen/Licht/Beschlags. | 1 | 51319447333 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| 02 | Side window door left | VSG | 1 | 51339853611 | Shop at ECS Tuning | |||||
| 02 | Side window door right | VSG | 1 | 51339853612 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window rear left door | VSG / SSG | 1 | 51359853615 | Shop at ECS Tuning | |||||
| 03 | Side window rear door right | VSG /SSG | 1 | 51359853616 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 03 | Side window rear left door | VSG | 1 | 51359853613 | Shop at ECS Tuning | |||||
| 03 | Side window rear door right | VSG | 1 | 51359853614 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing and TV function |
S420A=Yes S601A=No |
|||||||||
| 04 | Fixed side window rear left | 1 | 51379881637 | Shop at ECS Tuning | ||||||
| 04 | Fixed side window right rear | VSG | 1 | 51379881638 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing and TV function |
S420A=No S601A=No |
|||||||||
| 04 | Fixed side window rear left | VSG | 1 | 51379451493 | Shop at ECS Tuning | |||||
| 04 | Fixed side window right rear | VSG | 1 | 51379451494 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 05 | Rear window | 1 | 51319447352 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 05 | Rear window | 1 | 51319447352 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window | SSG | 1 | 51319853093 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
|||||||||
| 05 | Rear window | SSG | 1 | 51319853093 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| 06 | Bump stop | 13 | 51317288462 | Shop at ECS Tuning | ||||||
| 07 | Hook&loop fastener | 10 X 20 | 4 | 51318269160 | $0.63 | Shop at ECS Tuning | ||||
| 08 | Hook&loop fastener | 2 | 51377164933 | $0.57 | Shop at ECS Tuning | |||||
