Door window lifting mechanism rear for BMW XM G09 XM (2025)

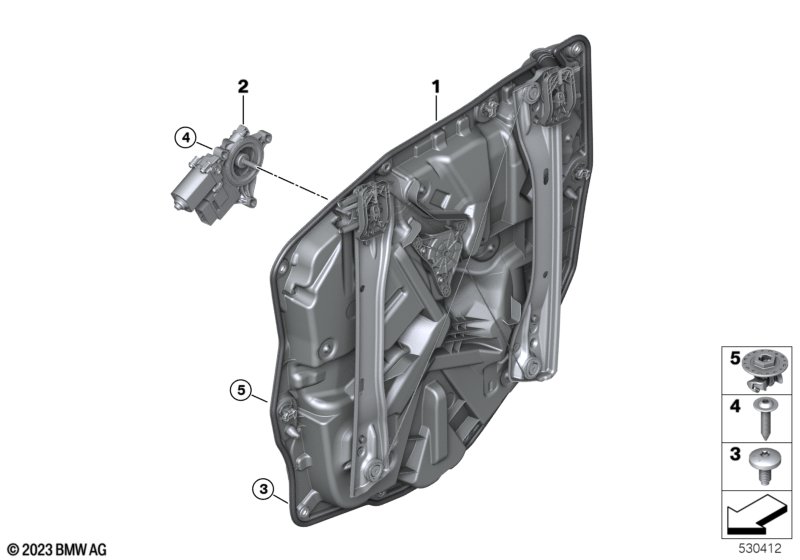

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support rear door left | 1 | 51355A3B5D1 | Shop at ECS Tuning | ||||||
| 01 | Support right rear door | 1 | 51355A3B5D2 | Shop at ECS Tuning | ||||||
| 02 | Drive power window rear left | 1 | 61355A53093 | Shop at ECS Tuning | ||||||
| 02 | Drive power window right rear | 1 | 61355A53094 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | M6 | 14 | 07147465017 | Shop at ECS Tuning | |||||
| 04 | Torx-bolt for plastic material | ISA L=22MM | 6 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Lock | 6 | 51337955257 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Support rear door left (Part #51355A3B5D1).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Support rear door left (51355A3B5D1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Support rear door left by locating its position on the schematic, which then links to the official BMW part number 51355A3B5D1 for the Vehicle trim section.
