Heat insulation for BMW XM G09 XM (2025)

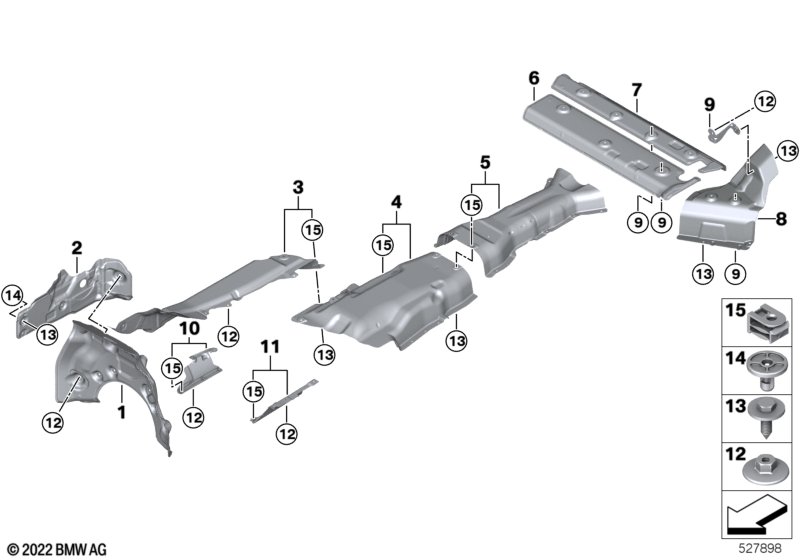

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation bulkhead | 1 | 51489451741 | Shop at ECS Tuning | ||||||
| 03 | Heat insulation side right front | 1 | 04/2026 | 51489451756 | NoS | Shop at ECS Tuning | ||||
| 03 | Heat insulation side left front | 1 | 51489451755 | NoS | Shop at ECS Tuning | |||||
| 04 | Tunnel heat insulator | 1 | 51489451752 | NoS | Shop at ECS Tuning | |||||
| 05 | Heat insulation, tank | 1 | 51489451759 | NoS | Shop at ECS Tuning | |||||
| 06 | Heat shield, rear muffler, front | 1 | 51487424934 | NoS | Shop at ECS Tuning | |||||
| 07 | Heat insulation for rear muffler | 1 | 51487424936 | NoS | Shop at ECS Tuning | |||||
| 08 | Heat insulation rear muffler left | 1 | 51489451761 | NoS | Shop at ECS Tuning | |||||
| 08 | Heat insulation rear muffler right | 1 | 51489451762 | NoS | Shop at ECS Tuning | |||||
| 09 | Holder, rear muffler left | 1 | 51485A04C01 | NoS | Shop at ECS Tuning | |||||
| 09 | Holder, rear muffler right | 1 | 51485A04C02 | NoS | Shop at ECS Tuning | |||||
| 10 | Heat insulation center right | 1 | 51489451758 | Shop at ECS Tuning | ||||||
| 11 | Heat insulation center left | 1 | 51489451757 | NoS | Shop at ECS Tuning | |||||
| 12 | Plastic nut | 28 | 07149381677 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | TS5X20SW10 D=22 | 20 | 07149481168 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | L= 19.9MM | 8 | 07147306224 | Shop at ECS Tuning | |||||
| 15 | C-clip for plastic nut | TS5 | 14 | 07147311312 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
