Headlining for BMW 5 Series G60 Sedan 520i (2025)

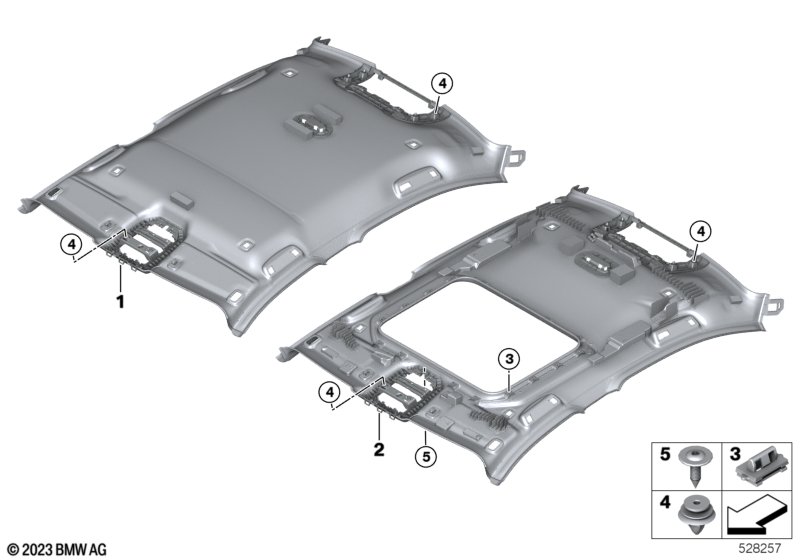

This Headlining technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=No S775A=Yes |
|||||||||
| 01 | Headliner | ANTHRAZIT | 1 | 51449504293 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headliner in Alcantara anthracite |
S402A=No S776A=Yes |
|||||||||
| 01 | Headlining | SCHWARZ | 1 | 51449504305 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headlining anthracite and Headliner in Alcantara anthracite |
S402A=No S775A=No S776A=No |
|||||||||
| 01 | Headliner | ATLASGRAU | 1 | 51445A3F674 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headliner in Alcantara anthracite |
S402A=Yes S776A=Yes |
|||||||||
| 02 | Headlining panoramic roof | SCHWARZ | 1 | 51448087864 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headlining anthracite and Headliner in Alcantara anthracite |
S402A=Yes S775A=Yes S776A=No |
|||||||||
| 02 | Headliner panoramic glass sunroof | ANTHRAZIT | 1 | 51449504660 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite and Headliner in Alcantara anthracite |
S402A=Yes S775A=No S776A=No |
|||||||||
| 02 | Headliner panoramic glass sunroof | ATLASGRAU | 1 | 51445A3F676 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headlining anthracite and Leather "Merino"/schwarz |
S402A=Yes S775A=No LKSW=Yes |
|||||||||
| 02 | Headliner panoramic glass sunroof | ANTHRAZIT | 1 | 51449504660 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 03 | Clip, panoramic glass sunroof | 20 | 07147212593 | $0.36 | Shop at ECS Tuning | |||||
| 04 | Clip | 6 | 07145A54705 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 05 | Fillister head self-tapp.screw w collar | ST 3,5X12 | 1 | 07147139407 | $0.11 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
