Rear window shelf for BMW 5 Series G90 M5 M5 (2025)

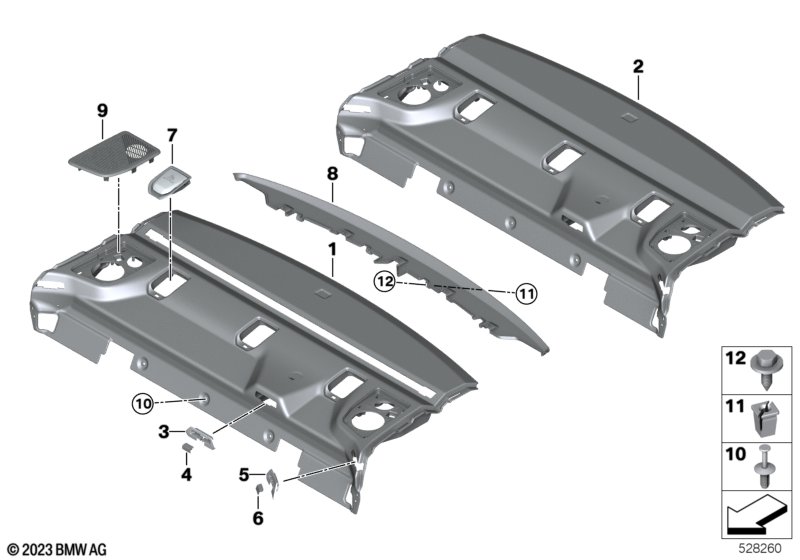

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Roller sun vizor, rear lateral and Leather Merino/Silverstone/black or Leather 'Merino' red/black or Leather Merino/Kyalami orange/black or Leather "Merino"/schwarz |
S416A=Yes LKIA=Yes LKKG=Yes LKKX=Yes LKSW=Yes |
|||||||||
| 01 | Rear shelf | ANTHRAZIT | 1 | 51465A36F84 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather Merino/Silverstone/black or Leather 'Merino' red/black or Leather Merino/Kyalami orange/black or Leather "Merino"/schwarz |
S416A=No LKIA=Yes LKKG=Yes LKKX=Yes LKSW=Yes |
|||||||||
| 02 | Rear shelf | ANTHRAZIT | 1 | 51465A36F83 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino/Silverstone/black or Leather 'Merino' red/black or Leather Merino/Kyalami orange/black or Leather "Merino"/schwarz |
LKIA=Yes LKKG=Yes LKKX=Yes LKSW=Yes |
|||||||||
| 03 | Seat belt finisher strip, center | SCHWARZ | 1 | 51465A36F94 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover panel for belt gap cover center | SCHWARZ | 1 | 51465A36F99 | NoS | Shop at ECS Tuning | ||||
| 05 | Seat belt finisher strip, left | SCHWARZ | 1 | 51465A36F95 | NoS | Shop at ECS Tuning | ||||
| 05 | Seat belt finisher strip, right | SCHWARZ | 1 | 51465A36F96 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover panel for belt gap cover left | SCHWARZ | 1 | 51465A36F97 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover panel for belt gap cover right | SCHWARZ | 1 | 51465A36F98 | NoS | Shop at ECS Tuning | ||||
| 07 | Trim cover for Top Tether | SCHWARZ | 3 | 51465A36F93 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover for trim grill | SCHWARZ | 1 | 51465A36F88 | NoS | Shop at ECS Tuning | ||||
| 09 | Speaker trim left | BLACK | 1 | 51465A38ED1 | NoS | Shop at ECS Tuning | ||||
| 09 | Speaker trim right | BLACK | 1 | 51465A38ED2 | NoS | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | D = 6MM | 5 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Sheet metal screw | ST4,8X16 | 4 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G90 M5 M5 Rear window shelf?
- This technical diagram illustrates the Rear window shelf within the Vehicle trim group for the 5 Series G90 M5 M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Rear shelf (Part #51465A36F84).
- Which models use the hardware listed in this Rear window shelf?
- The hardware and components featured in the Rear window shelf are specific to the 5 Series G90 M5 M5 produced during 2025. These technical specifications ensure that parts like the Rear shelf (51465A36F84) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window shelf assembly?
- Each item in the Rear window shelf corresponds to the numbered list below the illustration. For the 5 Series G90 M5 M5, you can identify the Rear shelf by locating its position on the schematic, which then links to the official BMW part number 51465A36F84 for the Vehicle trim section.
