Emblems / letterings for BMW 5 Series G30 LCI 520dX (2022)

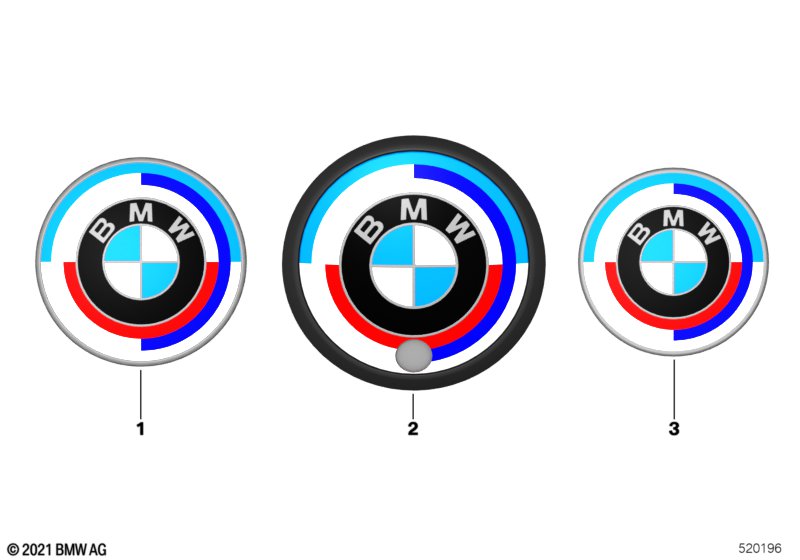

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW M Heritage logos |
S3MQA=Yes |
||||||||
| only applies to hood | ||||||||||
| 01 | BMW emblem 50 Years M | Ø 82MM / M | 1 | 51148087194 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 02 | BMW emblem 50 Years M | Ø 74MM / M | 1 | 51148087196 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520dX Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 5 Series G30 LCI 520dX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the BMW emblem 50 Years M (Part #51148087194).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 5 Series G30 LCI 520dX produced during 2022. These technical specifications ensure that parts like the BMW emblem 50 Years M (51148087194) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520dX, you can identify the BMW emblem 50 Years M by locating its position on the schematic, which then links to the official BMW part number 51148087194 for the Vehicle trim section.
