Lateral trunk floor trim panel for BMW XM G09 XM (2025)

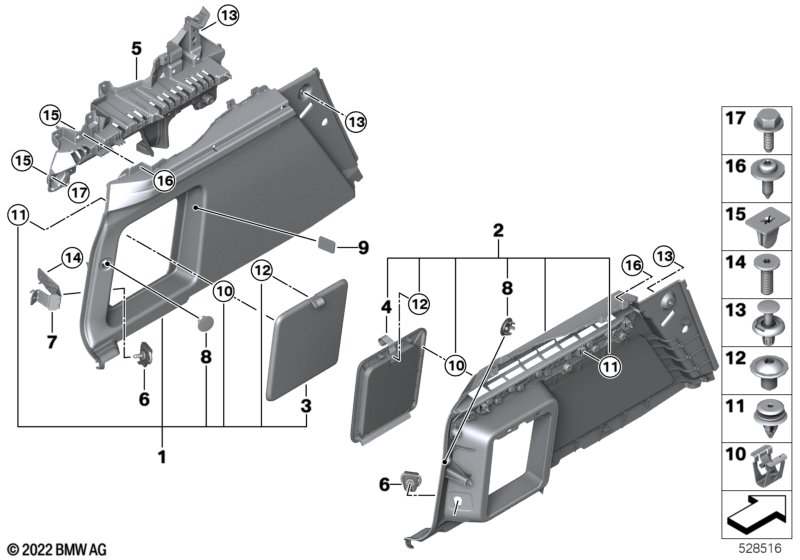

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luggage compartment trim panel left | ANTHRAZIT | 1 | 51475A21B97 | NoS | Shop at ECS Tuning | ||||
| 02 | Luggage compartment trim panel right | ANTHRAZIT | 1 | 51475A21B98 | NoS | Shop at ECS Tuning | ||||
| 03 | Left trunk flap | 1 | 51475A7F195 | NoS | Shop at ECS Tuning | |||||
| 04 | Right trunk flap | 1 | 51475A7F196 | NoS | Shop at ECS Tuning | |||||
| 05 | Support shoulder left | 1 | 51479873643 | NoS | Shop at ECS Tuning | |||||
| 05 | Support shoulder right | 1 | 51479873644 | NoS | Shop at ECS Tuning | |||||
| 06 | Tie-down ring | 2 | 51477438824 | Shop at ECS Tuning | ||||||
| 07 | Retainer for tie-down ring, left | 1 | 51475A16621 | NoS | Shop at ECS Tuning | |||||
| 07 | Retainer for tie-down ring, right | 1 | 51475A16622 | NoS | Shop at ECS Tuning | |||||
| 08 | Cover | SCHWARZ | 1 | 52207932507 | NoS | Shop at ECS Tuning | ||||
| 09 | Symbol first-aid kit | 1 | 51477433566 | Shop at ECS Tuning | ||||||
| 10 | Plug-in retainer | 4 | 07146957031 | $0.80 | Shop at ECS Tuning | |||||
| 11 | Clip Natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | 2 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 14 | Countersunk screw | M8X22 10.9 MK | 4 | 34117701390 | $2.06 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | TS 4,2 - TS 4,8 | 24 | 51718242741 | $0.32 | Shop at ECS Tuning | ||||
| 16 | Screw | 5X16 | 4 | 51449908622 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | 20 | 07147118369 | $0.80 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Lateral trunk floor trim panel?
- This technical diagram illustrates the Lateral trunk floor trim panel within the Vehicle trim group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Luggage compartment trim panel left (Part #51475A21B97).
- Which models use the hardware listed in this Lateral trunk floor trim panel?
- The hardware and components featured in the Lateral trunk floor trim panel are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Luggage compartment trim panel left (51475A21B97) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lateral trunk floor trim panel assembly?
- Each item in the Lateral trunk floor trim panel corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Luggage compartment trim panel left by locating its position on the schematic, which then links to the official BMW part number 51475A21B97 for the Vehicle trim section.
