Sound insulation roof for BMW 3 Series G21 Touring 318d (2022)

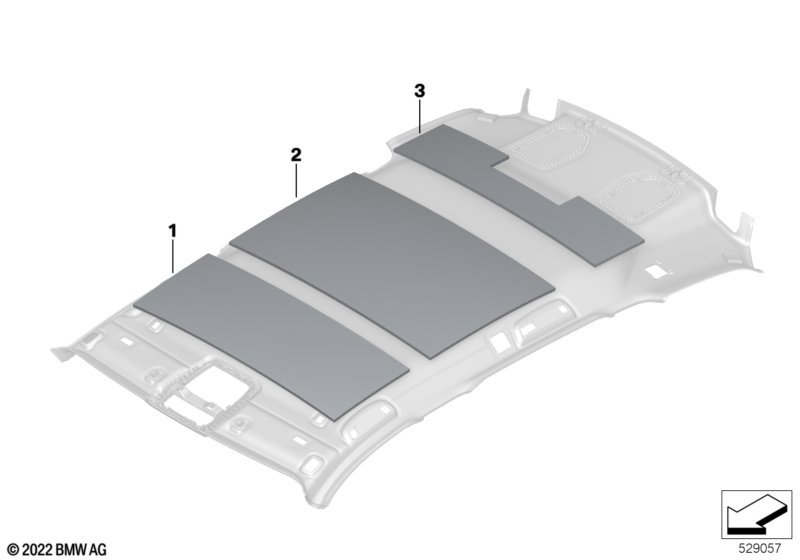

This Sound insulation roof technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof and Glass roof, electrical |
S402A=No S403A=No |
|||||||||
| 01 | Sound insulation for roof, front | 1 | 51487433286 | NoS | Shop at ECS Tuning | |||||
| 02 | Sound insulation roof | 1 | 51487433280 | NoS | Shop at ECS Tuning | |||||
| 03 | Sound insulating roof rear | 1 | 51487457656 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 318d Sound insulation roof?
- This technical diagram illustrates the Sound insulation roof within the Vehicle trim group for the 3 Series G21 Touring 318d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation for roof, front (Part #51487433286).
- Which models use the hardware listed in this Sound insulation roof?
- The hardware and components featured in the Sound insulation roof are specific to the 3 Series G21 Touring 318d produced during 2022. These technical specifications ensure that parts like the Sound insulation for roof, front (51487433286) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulation roof assembly?
- Each item in the Sound insulation roof corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 318d, you can identify the Sound insulation for roof, front by locating its position on the schematic, which then links to the official BMW part number 51487433286 for the Vehicle trim section.
