Air ducts for BMW 5 Series G60 Sedan 530e (2025)

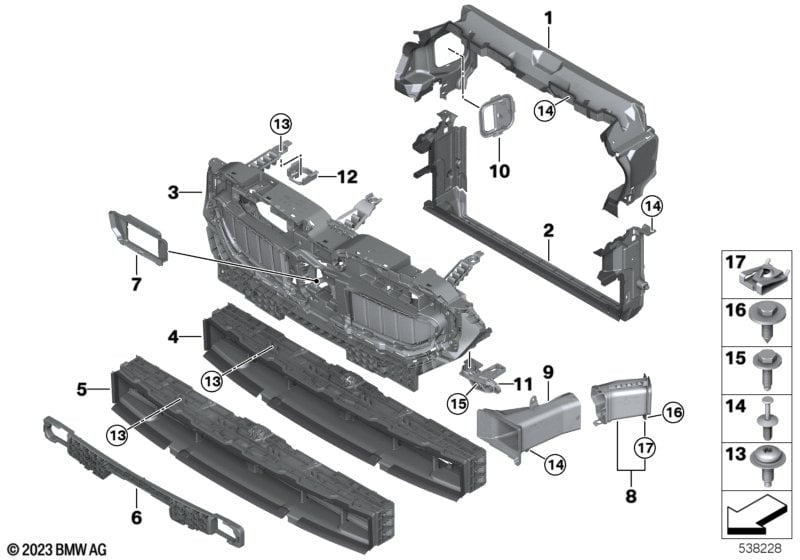

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air routing radiator top | 1 | 51749883899 | Shop at ECS Tuning | ||||||
| 02 | Air routing radiator bottom | 1 | 51749883900 | Shop at ECS Tuning | ||||||
| 03 | Air duct with air flap control, upper | 1 | 51745A09B52 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle |
S138A=Yes |
|||||||||
| 04 | Air routing bottom | 1 | 51745A09B56 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Country control for Brazil 00464 |
S138A=No S1CBA=No S8LBA=No |
|||||||||
| 04 | Air routing bottom | 1 | 51745A09B56 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Country control for Brazil 00464 |
S138A=No S1CBA=Yes S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | 1 | 51745A09B57 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Country control for Brazil 00464 |
S138A=No S1CBA=Yes S8LBA=No |
|||||||||
| 05 | Air duct with air flap control, lower | 1 | 51745A09B57 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Country control for Brazil 00464 |
S138A=No S1CBA=No S8LBA=Yes |
|||||||||
| 05 | Air duct with air flap control, lower | 1 | 51745A09B57 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and M SPORT EXTERIEURUMFAENGE |
S230A=No S9T1A=No |
|||||||||
| 06 | Bumper carrier shock absorber | 1 | 51745A3CF95 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and M SPORT EXTERIEURUMFAENGE |
S230A=No S9T1A=Yes |
|||||||||
| 06 | Bumper carrier shock absorber | 1 | 51745A3CF96 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Driving Assistant Plus and Driving assistant professional Background: Installation of this component requires software-side adjustment of the radome heating actuation, otherwise there is a risk of component damage on the radome heating. |
S230A=Yes S5ATA=Yes S5AUA=Yes |
|||||||||
| 07 | Front radar sensor, funnel | 1 | 51745B3A3D6 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Driving Assistant Plus and Driving assistant professional Background: Installation of this component requires software-side adjustment of the radome heating actuation, otherwise there is a risk of component damage on the radome heating. |
S230A=Yes S5ATA=Yes S5AUA=No |
|||||||||
| 07 | Front radar sensor, funnel | 1 | 51745B3A3D6 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Driving Assistant Plus and Driving assistant professional Background: Installation of this component requires software-side adjustment of the radome heating actuation, otherwise there is a risk of component damage on the radome heating. |
S230A=Yes S5ATA=No S5AUA=Yes |
|||||||||
| 07 | Front radar sensor, funnel | 1 | 51745B3A3D6 | Shop at ECS Tuning | ||||||
| 08 | Brake air duct wheel well left | 1 | 51749883897 | Shop at ECS Tuning | ||||||
| 08 | Brake air duct wheel well right | 1 | 51749883898 | Shop at ECS Tuning | ||||||
| 09 | Front left brake air duct | 1 | 51749883895 | Shop at ECS Tuning | ||||||
| 09 | Front right brake air duct | 1 | 51749883896 | Shop at ECS Tuning | ||||||
| 11 | Holder upper left | 1 | 51745A015A1 | Shop at ECS Tuning | ||||||
| 11 | Holder upper right | 1 | 51745A015A2 | Shop at ECS Tuning | ||||||
| 12 | Detent element | 2 | 51745A1A403 | Shop at ECS Tuning | ||||||
| 13 | Oval-head screw with spring washer | M6X20 | 7 | 07145A48F72 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X20-8.8 | 4 | 07119907898 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| 17 | C-clip nut | 4 | 51717065773 | Shop at ECS Tuning | ||||||
