Sound insulating rear for BMW 5 Series G60 Sedan 540dX (2025)

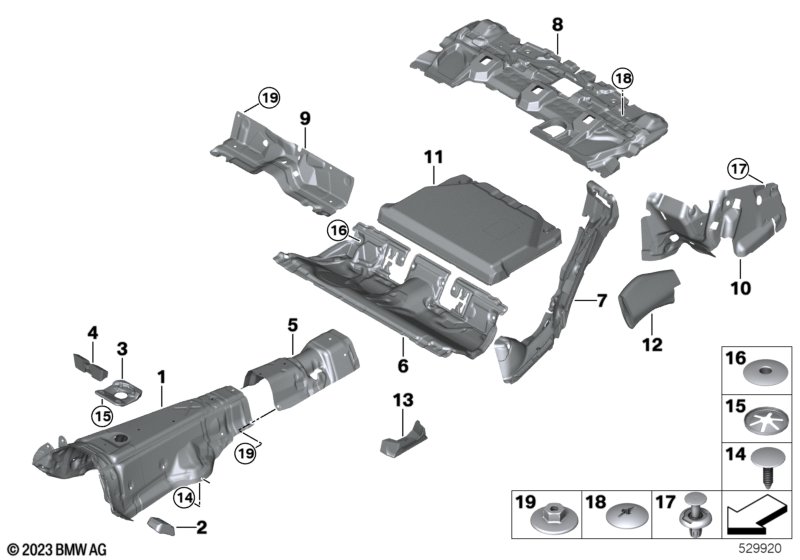

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation tunnel front | ICE | 1 | 51485A25B77 | Shop at ECS Tuning | |||||
| 02 | Sound insulat., accelerator pedal mod. | 1 | 51489870827 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation, condensation drain | 1 | 51489870820 | Shop at ECS Tuning | ||||||
| 04 | Sound insulation for heater, top | 1 | 51489870819 | Shop at ECS Tuning | ||||||
| 05 | Sound insulation tunnel rear | 1 | 51485A0AC20 | Shop at ECS Tuning | ||||||
| 06 | Sound insulation floor rear | 1 | 51485A0A8F9 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating wheel housing rear left | INNEN BEV | 1 | 51485A89727 | Shop at ECS Tuning | |||||
| 07 | Sound insulating wheel housing rear rig. | INNEN | 1 | 51485A89728 | Shop at ECS Tuning | |||||
| 08 | Sound ins, luggage comp part wall, top | 1 | 51485A0A901 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation cargo area left | 1 | 51485A01793 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation cargo area right | 1 | 51485A01794 | Shop at ECS Tuning | ||||||
| 12 | Absorber, sidewall | 2 | 51487381211 | Shop at ECS Tuning | ||||||
| 13 | Sound insulation, B-pillar, bottom left | 1 | 51485A0A295 | Shop at ECS Tuning | ||||||
| 13 | Sound insulation, B-pillar, bottom right | 1 | 51485A0A296 | Shop at ECS Tuning | ||||||
| 14 | Plug-in retainer | 1 | 07147283890 | Shop at ECS Tuning | ||||||
| 15 | Axial securing clip | 5,8MM | 4 | 07147295776 | Shop at ECS Tuning | |||||
| 16 | Clip for ball attachment | 6 | 07147354230 | Shop at ECS Tuning | ||||||
| 17 | Expanding rivet | 5 | 07147401727 | Shop at ECS Tuning | ||||||
| 18 | Plug, black | D=6,35MM | 1 | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| 19 | Plastic nut | 50 | 07149381677 | Shop at ECS Tuning |
