Wheelarch trim for BMW 5 Series G60 Sedan 550eX (2025)

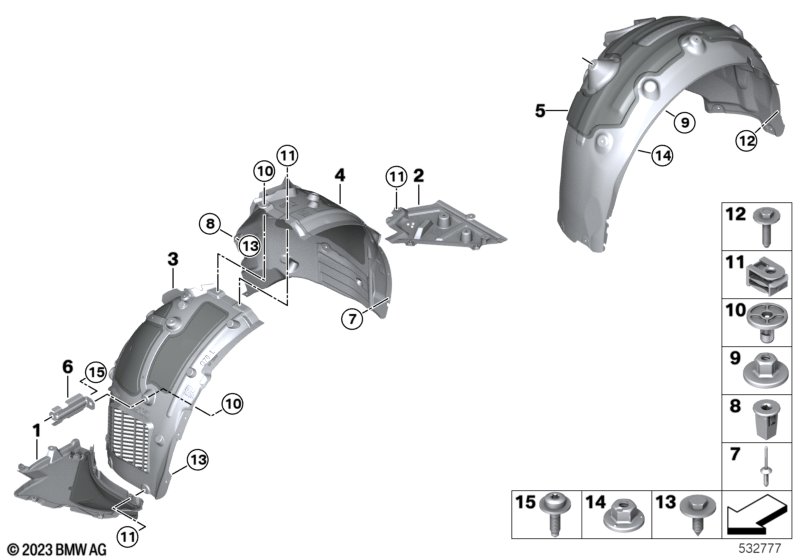

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
|||||||||
| 01 | Cover, wheel housing, bottom left | 1 | 51759881711 | Shop at ECS Tuning | ||||||
| 01 | Cover, wheel housing, bottom right | 1 | 51759881712 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Cover, wheel housing, bottom left | MSP | 1 | 51755A036D3 | Shop at ECS Tuning | |||||
| 01 | Cover, wheel housing, bottom right | MSP | 1 | 51755A036D4 | Shop at ECS Tuning | |||||
| 03 | Seal, wh arch cover, front, left front | 1 | 51719621235 | Shop at ECS Tuning | ||||||
| 03 | Seal, wh arch cover, front, right front | 1 | 51719621236 | Shop at ECS Tuning | ||||||
| 04 | Wheel arch cover rear section left front | BEV | 1 | 51719850639 | Shop at ECS Tuning | |||||
| 04 | Wheel arch cover rear sect.right front | BEV | 1 | 51719850640 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear left | 1 | 51719881679 | Shop at ECS Tuning | ||||||
| 05 | Cover, wheel housing, rear right | 1 | 51719881680 | Shop at ECS Tuning | ||||||
| 06 | Bracket for wheelhousing | 2 | 51755A1AFE1 | NoS | Shop at ECS Tuning | |||||
| 07 | Blind compression rivet | 5X15.8 | 6 | 51755A383B7 | NoS | Shop at ECS Tuning | ||||
| 08 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Plastic capnut with washer | D=22MM | 16 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | L= 19.9MM | 27 | 07147306224 | Shop at ECS Tuning | |||||
| 11 | C-clip for plastic nut | TS5 | 14 | 07147311312 | Shop at ECS Tuning | |||||
| 12 | Hexagon screw for plastic | 4 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | TS5X20SW10 D=22 | 60 | 07149481168 | Shop at ECS Tuning | |||||
| 14 | Plastic nut | T6 SW 12 | 4 | 07149854444 | NoS | Shop at ECS Tuning | ||||
| 15 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
