Underhood shield for BMW 5 Series G60 Sedan 530e (2025)

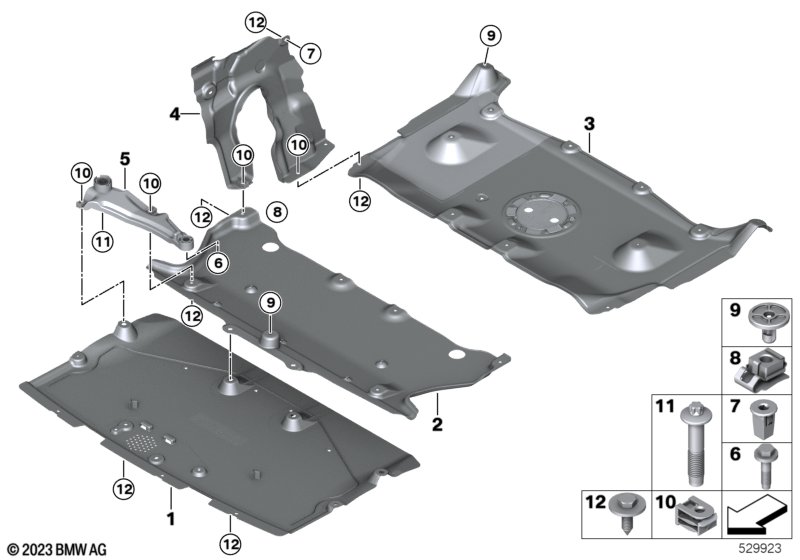

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine compartment shielding | 1 | 51755A1CC79 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 02 | Cover for steering gear | SHORT | 1 | 51759498261 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version China and Skid plate national versions |
L8AAA=No S8SDA=No |
|||||||||
| 02 | Cover for steering gear | LONG | 1 | 51759498260 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 03 | Engine compartment shielding rear | PHEV | 1 | 51755A25609 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 03 | Engine compartment shielding rear | PHEV | 1 | 51755A07BA9 | Shop at ECS Tuning | |||||
| 04 | Cover for steering assembly, front left | 1 | 51759498321 | NoS | Shop at ECS Tuning | |||||
| 04 | Cover for steering assembly, front right | 1 | 51759498322 | NoS | Shop at ECS Tuning | |||||
| 05 | Bracket, cover, left | MAS | 1 | 51759449273 | NoS | Shop at ECS Tuning | ||||
| 05 | Bracket for cover, right | MAS | 1 | 51759449274 | NoS | Shop at ECS Tuning | ||||
| 06 | Multi-purpose bolt | 10X45 ZNS3 | 2 | 31116899302 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | M10-10 ZNS3 | 2 | 07147283812 | Shop at ECS Tuning | |||||
| 09 | Expanding nut | L= 19.9MM | 27 | 07147306224 | Shop at ECS Tuning | |||||
| 10 | C-clip for plastic nut | TS5 | 23 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | ASA-Bolt | M14X1,5X70 ZNS3 | 2 | 07148837399 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | TS5X20SW10 D=22 | 37 | 07149481168 | Shop at ECS Tuning | |||||
