Trim panel dashboard for BMW 5 Series G60 Sedan 520i (2024)

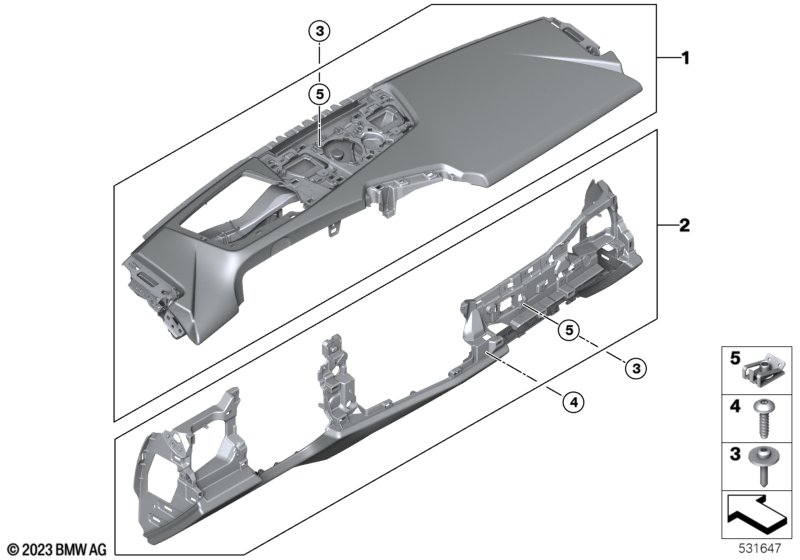

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Live dashboard Professional and Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S6U3A=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 01 | Instrument panel upper section HUD | ATLASGRAU | 1 | 51459638316 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Live dashboard Professional and Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S6U3A=No VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 01 | Instrument panel, upper part | ATLASGRAU | 1 | 51459638302 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Live dashboard Professional and Veganza perf./stepped smoke-white or Veganza perf./stepped burgundy or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
S6U3A=No KSFU=Yes KSJU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 01 | Instrument panel upper section | SCHWARZ | 1 | 51459638315 | NoS | Shop at ECS Tuning | ||||
| For vehicles with BMW Live dashboard Professional and Veganza perf./stepped smoke-white or Veganza perf./stepped burgundy or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
S6U3A=Yes KSFU=Yes KSJU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 01 | Instrument panel upper section HUD | SCHWARZ | 1 | 51459638317 | NoS | Shop at ECS Tuning | ||||
| 02 | Instrument panel lower section | 1 | 51459638323 | NoS | Shop at ECS Tuning | |||||
| 03 | Combi. fillister head self-tapping screw | 21 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 04 | Torx screw | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 05 | C-clip sheet metal nut | 24 | 07149496755 | NoS | Shop at ECS Tuning | |||||
