Mounting parts, I-panel, bottom for BMW 5 Series G68 Sedan 530LiX (2025)

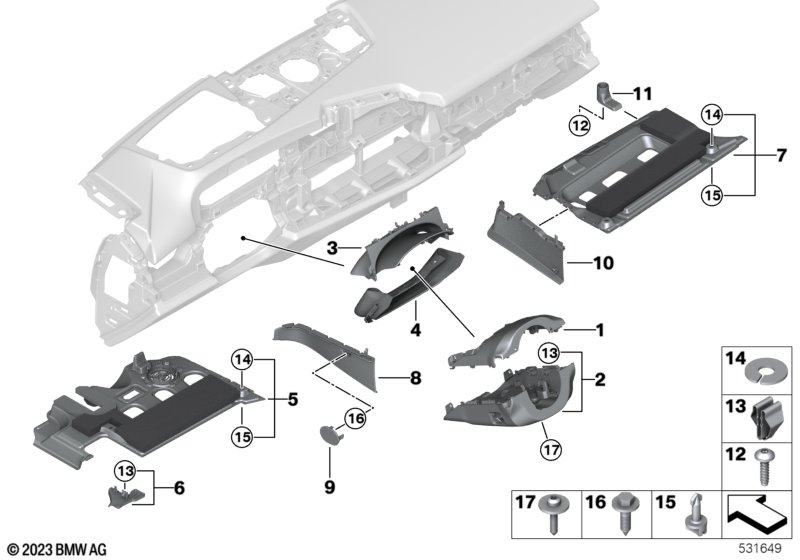

This Mounting parts, I-panel, bottom technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, steering column, top | 1 | 51459631771 | NoS | Shop at ECS Tuning | |||||
| 02 | Trim panel, steering column, bottom | 1 | 51459631770 | NoS | Shop at ECS Tuning | |||||
| 03 | Joint cover, steering column, upper | 1 | 51459631773 | NoS | Shop at ECS Tuning | |||||
| 04 | Joint cover, steering column, lower | 1 | 51459631772 | NoS | Shop at ECS Tuning | |||||
| 05 | Trim panel foot controls | 1 | 51459631761 | NoS | Shop at ECS Tuning | |||||
| 06 | Trim cover for pedal assembly | 1 | 51459631762 | NoS | Shop at ECS Tuning | |||||
| 07 | Passenger's footwell trim panel | 1 | 51459631763 | NoS | Shop at ECS Tuning | |||||
| 08 | Cover panel tunnel driver's side | 1 | 51459632760 | NoS | Shop at ECS Tuning | |||||
| 09 | Screw cover cap | SCHWARZ | 1 | 51459634525 | NoS | Shop at ECS Tuning | ||||
| 10 | Cover panel tunnel passenger's side | 1 | 51459632761 | NoS | Shop at ECS Tuning | |||||
| 11 | Bracket, passenger's footwell trim panel | 1 | 51459631764 | NoS | Shop at ECS Tuning | |||||
| 12 | Torx screw | 5X18 | 1 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Clamp | 3 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Securing clip | 4 | 07149321592 | Shop at ECS Tuning | ||||||
| 15 | Lock | 4 | 51165A260C9 | Shop at ECS Tuning | ||||||
| 16 | Screw | 5X28 ZNNIV | 1 | 07119906661 | Shop at ECS Tuning | |||||
| 17 | Combi. fillister head self-tapping screw | 1 | 07149323312 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
