M Trim, rear for BMW 5 Series G60 Sedan 520d (2025)

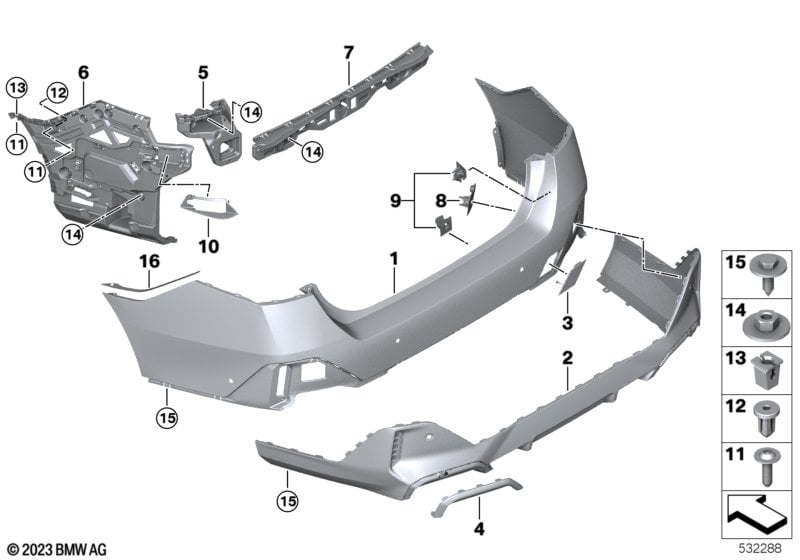

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Bumper cover rear top | - M - | 1 | 51125A5A721 | Shop at ECS Tuning | |||||
| 02 | Trim panel, bumper, rear, bottom | - M - | 1 | 51125A5A722 | Shop at ECS Tuning | |||||
| 03 | Cover for towing eye | - M - | 1 | 51125A5A724 | Shop at ECS Tuning | |||||
| 04 | Trim exhaust system, left | 1 | 51125A37687 | Shop at ECS Tuning | ||||||
| 04 | Trim, exhaust system, right | 1 | 51125A37688 | Shop at ECS Tuning | ||||||
| 05 | Mount corner section left | 1 | 51125A011C1 | Shop at ECS Tuning | ||||||
| 05 | Mount corner section right | 1 | 51125A011C2 | Shop at ECS Tuning | ||||||
| 06 | Mount, bumper rear left | 1 | 51125A011C3 | Shop at ECS Tuning | ||||||
| 06 | Mount, bumper rear right | 1 | 51125A011C4 | Shop at ECS Tuning | ||||||
| 07 | Bumper guide rear center | 1 | 51125A011B7 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 08 | Kit mount PDC sensor bottom | - M - | 1 | 51125A5A785 | Shop at ECS Tuning | |||||
| 09 | Kit mount PDC sensor top | - M - | 1 | 51125A5A784 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=Yes S5DXA=Yes |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=Yes S5DXA=No |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=No S5DXA=Yes |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=Yes S5AUA=No S5DXA=No |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=No S5AUA=Yes S5DXA=Yes |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=No S5AUA=Yes S5DXA=No |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and BMW Personal pilot |
S5ASA=No S5AUA=No S5DXA=Yes |
|||||||||
| 10 | Absorber funnel rear left | 1 | 51125A011D3 | Shop at ECS Tuning | ||||||
| 10 | Absorber funnel right rear | 1 | 51125A011D4 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | ST5X17-ZNS3 | 12 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Plug-in nut | 10 | 51127461407 | Shop at ECS Tuning | ||||||
| 13 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Combination nut | 15 | 07147305178 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| 16 | Protective film, rear bumper left | 1 | 51125A83B61 | Shop at ECS Tuning | ||||||
| 16 | Protective film, right rear bumper | 1 | 51125A83B62 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520d M Trim, rear?
- This technical diagram illustrates the M Trim, rear within the Vehicle trim group for the 5 Series G60 Sedan 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Bumper cover rear top (Part #51125A5A721).
- Which models use the hardware listed in this M Trim, rear?
- The hardware and components featured in the M Trim, rear are specific to the 5 Series G60 Sedan 520d produced during 2025. These technical specifications ensure that parts like the Bumper cover rear top (51125A5A721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M Trim, rear assembly?
- Each item in the M Trim, rear corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520d, you can identify the Bumper cover rear top by locating its position on the schematic, which then links to the official BMW part number 51125A5A721 for the Vehicle trim section.
