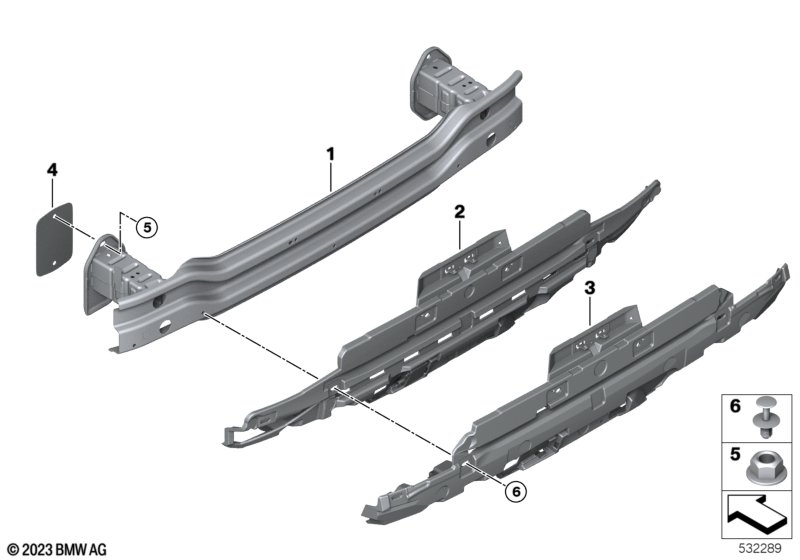

Carrier, rear for BMW 5 Series G60 Sedan 520i (2025)
This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Trailer coupling |
S3ACA=No |
||||||||
| 01 | Carrier, bumper rear | 1 | 51125A01199 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
|||||||||
| 02 | Adapter bumper bracket rear | 1 | 51125A011A9 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 03 | Adapter bumper bracket rear | - M - | 1 | 51128084702 | Shop at ECS Tuning | |||||
| 04 | Seal | 2 | 51125A7CEA6 | Shop at ECS Tuning | ||||||
| 05 | Hex nut | 4 | 07147266441 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning | ||||||
