Center console for BMW 5 Series G60 Sedan 520i (2025)

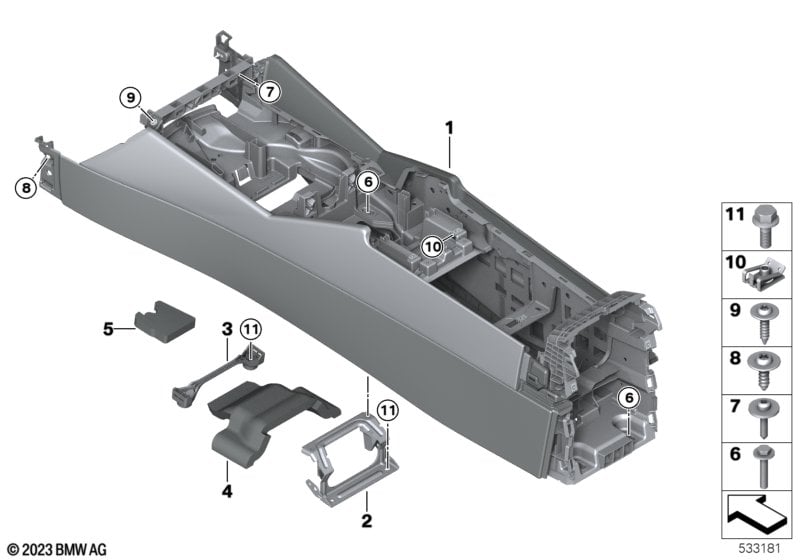

This Center console technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Veganza perf./stepped burgundy |
KSJU=Yes |
|||||||||
| 01 | Center console | BURGUNDY | 1 | 51165A4FC35 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 01 | Center console | RAUCHWEISS | 1 | 51165A4FC36 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 01 | Center console | KUPFERBRAUN | 1 | 51165A58629 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 01 | Center console | SILVERSTONE | 1 | 51165A58626 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 01 | Center console | ESPRESSOBRAUN | 1 | 51165A4FC40 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
LKSW=Yes VCJL=Yes |
|||||||||
| 01 | Center console | SCHWARZ | 1 | 51165A58630 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 01 | Center console | SCHWARZ | 1 | 51165A4FC42 | NoS | Shop at ECS Tuning | ||||
| 02 | Bracket, center console | 1 | 12/2024 | 51165B63FB6 | NoS | Shop at ECS Tuning | ||||
| 03 | Holder, cable duct, center cons | 1 | 51165A431D8 | NoS | Shop at ECS Tuning | |||||
| 04 | Sound insulation, center console | 1 | 51165A130C4 | NoS | Shop at ECS Tuning | |||||
| 05 | Noise insulation, tunnel | 2 | 51165A26881 | NoS | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X35 | 4 | 07119905188 | $2.11 | Shop at ECS Tuning | ||||
| 07 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 08 | Oval-head screw with washer | DELTA PT4X12 | 2 | 07149200941 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | DELTA PT4X16 | 2 | 07149197038 | Shop at ECS Tuning | |||||
| 10 | C-clip sheet metal nut | 10 | 07149496754 | NoS | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
