Roller sun vizor, rear door for BMW 5 Series G60 Sedan 530e (2025)

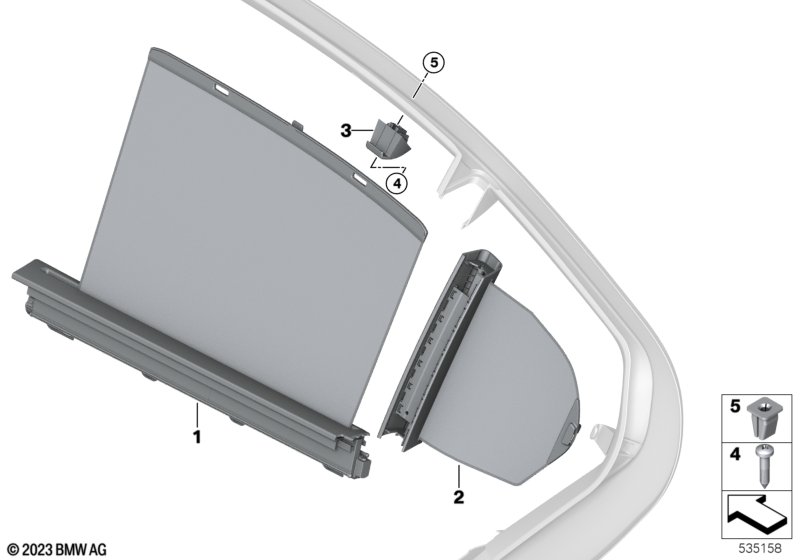

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Roller sunblind, rear left | 1 | 51355A16637 | Shop at ECS Tuning | ||||||
| 01 | Roller sunblind, right rear | 1 | 51355A16638 | Shop at ECS Tuning | ||||||
| For vehicles with Roller sun vizor, rear lateral Hooks from the roller blind triangular window are located in the window frame cover for the roller blind. |
S416A=Yes |
|||||||||
| 02 | Roller sun screen,triangular window left | 1 | 51355A16641 | Shop at ECS Tuning | ||||||
| 02 | Sun blind, triangular window right | 1 | 51355A16642 | Shop at ECS Tuning | ||||||
| 03 | Hook, roller sunblind | 4 | 51355A269A5 | Shop at ECS Tuning | ||||||
| 04 | Fillister head self-tapping screw | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 4 | 51161943152 | $0.50 | Shop at ECS Tuning | |||||
