Trim and seals for door, front for BMW 5 Series G60 Sedan 520i (2025)

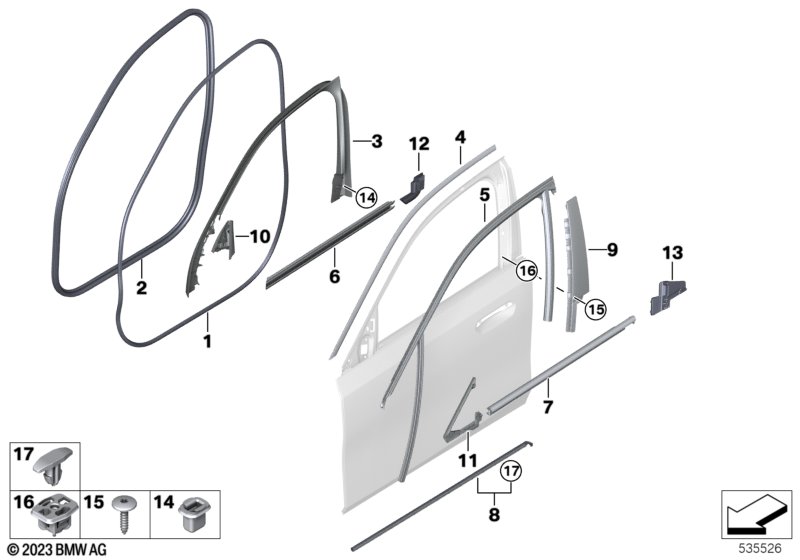

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51765A92E21 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, front | 1 | 01295A92E26 | Shop at ECS Tuning | ||||||
| 02 | Edge protection front door | 2 | 51725A05896 | Shop at ECS Tuning | ||||||
| 03 | Cover, window border, door, front left | 1 | 51335A167E3 | Shop at ECS Tuning | ||||||
| 03 | Cover, window border, door, front right | 1 | 51335A167E4 | Shop at ECS Tuning | ||||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE |
S3L7A=Yes |
|||||||||
| 04 | Window frame trim left front door | TITAN BRONZE | 1 | 51335A19D43 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | TITAN BRONZE | 1 | 51335A19D44 | Shop at ECS Tuning | |||||
| 04 | Window frame trim left front door | TITAN BRONZE | 1 | 51335B597C9 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | TITAN BRONZE | 1 | 51335B597D0 | Shop at ECS Tuning | |||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE and High gloss shadow line |
S3L7A=No S760A=No |
|||||||||
| 04 | Window frame trim left front door | ALU SATINIERT | 1 | 51335A058E7 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | ALU SATINIERT | 1 | 51335A058E8 | Shop at ECS Tuning | |||||
| 04 | Window frame trim left front door | ALU SATINIERT | 1 | 51335B597B9 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | ALU SATINIERT | 1 | 51335B597C0 | Shop at ECS Tuning | |||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3L7A=No S3MBA=No S760A=Yes |
|||||||||
| 04 | Window frame trim left front door | GLANZSCHWARZ | 1 | 51335A1A2C7 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | GLANZSCHWARZ | 1 | 51335A1A2C8 | Shop at ECS Tuning | |||||
| 04 | Window frame trim left front door | GLANZSCHWARZ | 1 | 51335B597D7 | Shop at ECS Tuning | |||||
| 04 | Window frame trim right front door | GLANZSCHWARZ | 1 | 51335B597D8 | Shop at ECS Tuning | |||||
| 05 | Window guide left front door | 1 | 51335A05897 | Shop at ECS Tuning | ||||||
| 05 | Window guide right front door | 1 | 51335A05898 | Shop at ECS Tuning | ||||||
| 06 | Window cavity seal inner, L front door | 1 | 51335A058A7 | Shop at ECS Tuning | ||||||
| 06 | Window cavity seal inner, R front door | 1 | 51335A058A8 | Shop at ECS Tuning | ||||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE |
S3L7A=Yes |
|||||||||
| 07 | Shaft cover outer left front door | TITAN BRONZE | 1 | 51335A29E71 | Shop at ECS Tuning | |||||
| 07 | Shaft cover, outer, door, front right | TITAN BRONZE | 1 | 51335A29E72 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front left | TITAN BRONZE | 1 | 51335B597E1 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front right | TITAN BRONZE | 1 | 51335B597E2 | Shop at ECS Tuning | |||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE and High gloss shadow line |
S3L7A=No S760A=No |
|||||||||
| 07 | Shaft cover outer left front door | ALU SATINIERT | 1 | 51335A1A157 | Shop at ECS Tuning | |||||
| 07 | Shaft cover, outer, door, front right | ALU SATINIERT | 1 | 51335A1A158 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front left | ALU SATINIERT | 1 | 51335B597D1 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front right | ALU SATINIERT | 1 | 51335B597D2 | Shop at ECS Tuning | |||||
| For vehicles with EXTERIOR TRIM IN TITANIUM BRONZE and Indiv. Ext. Line, burnished aluminium and High gloss shadow line |
S3L7A=No S3MBA=No S760A=Yes |
|||||||||
| 07 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 51335B597F0 | Shop at ECS Tuning | |||||
| 07 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 51335B580B3 | Shop at ECS Tuning | |||||
| 08 | Gap seal, door, door sill, left front | 1 | 51765A058B5 | Shop at ECS Tuning | ||||||
| 08 | Gap seal, door, door sill, right front | 1 | 51765A058B6 | Shop at ECS Tuning | ||||||
| 09 | B-pillar trim panel left front door | 1 | 51335A058C3 | Shop at ECS Tuning | ||||||
| 09 | B-pillar trim panel right front door | 1 | 51335A058C4 | Shop at ECS Tuning | ||||||
| 10 | Cover, mirror baseplate, inner left | 1 | 51335A167E5 | Shop at ECS Tuning | ||||||
| 10 | Cover, mirror baseplate, inner right | 1 | 51335A167E6 | Shop at ECS Tuning | ||||||
| 11 | Mirror triangle seal outer left | 1 | 51335A096B5 | Shop at ECS Tuning | ||||||
| 11 | Mirror triangle seal outer right | 1 | 51335A096B6 | Shop at ECS Tuning | ||||||
| 12 | Seal, B-pillar trim pan, front door, le. | 1 | 51335A17BA1 | Shop at ECS Tuning | ||||||
| 12 | Seal, B-pillar trim pan.fr.door right | 1 | 51335A17BA2 | Shop at ECS Tuning | ||||||
| 13 | Seal B-pillar trim panel bot.front left | 1 | 51335A17BA3 | Shop at ECS Tuning | ||||||
| 13 | Seal B-pillar trim panel bot.front right | 1 | 51335A17BA4 | Shop at ECS Tuning | ||||||
| 14 | Plug-in attachment with sealing disk | 4 | 51416991309 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | 8 | 07147453046 | Shop at ECS Tuning | ||||||
| 16 | Clip B-pillar trim panel | 8 | 07145A013C0 | Shop at ECS Tuning | ||||||
| 17 | Clip | 32 | 07147444267 | Shop at ECS Tuning | ||||||
