Trim panel leg room for BMW 5 Series G60 Sedan 520i (2024)

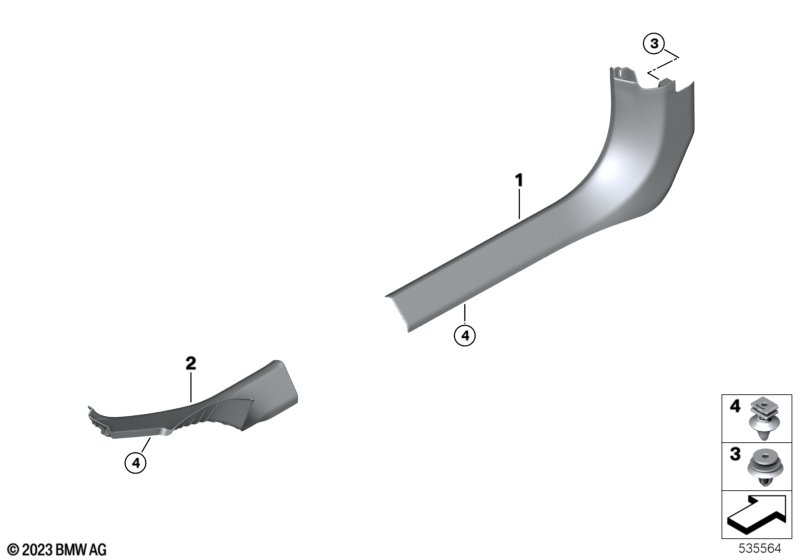

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side trim panel, front lower left | SCHWARZ | 1 | 51435A36B97 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim panel, front lower right | SCHWARZ | 1 | 51435A36B98 | NoS | Shop at ECS Tuning | ||||
| 02 | Door sill cover strip rear left | SCHWARZ | 1 | 51435A36B95 | NoS | Shop at ECS Tuning | ||||
| 02 | Door sill cover strip right rear | SCHWARZ | 1 | 51435A36B96 | NoS | Shop at ECS Tuning | ||||
| 03 | Clip with washer, natur | WEIß | 4 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 04 | Clip | 16 | 07147430771 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Trim panel leg room?
- This technical diagram illustrates the Trim panel leg room within the Vehicle trim group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Side trim panel, front lower left (Part #51435A36B97).
- Which models use the hardware listed in this Trim panel leg room?
- The hardware and components featured in the Trim panel leg room are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Side trim panel, front lower left (51435A36B97) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel leg room assembly?
- Each item in the Trim panel leg room corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Side trim panel, front lower left by locating its position on the schematic, which then links to the official BMW part number 51435A36B97 for the Vehicle trim section.
