Emblems / letterings for BMW 5 Series G60 Sedan 520i (2024)

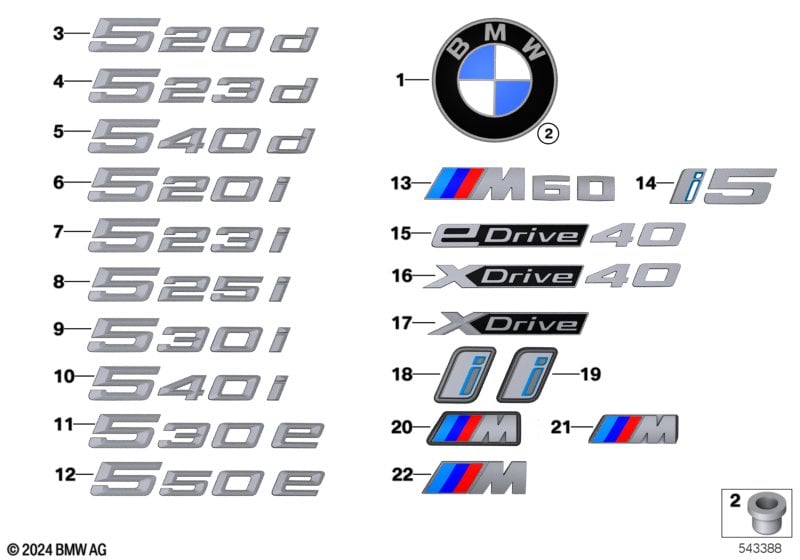

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to trunk lid | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147499154 | Shop at ECS Tuning | |||||
| only applies to hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147463684 | Shop at ECS Tuning | |||||
| 02 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 06 | Lettering | 520I | 1 | 51145A0C8E5 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 08 | Lettering | 525I | 1 | 51145A0C984 | Shop at ECS Tuning | |||||
| 22 | Emblem side panel | M / PERLGLANZ | 2 | 51145A4CE12 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Badge (Part #51147499154).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Badge (51147499154) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Badge by locating its position on the schematic, which then links to the official BMW part number 51147499154 for the Vehicle trim section.
