Storage tray, center console for BMW 5 Series G60 Sedan 530i (2025)

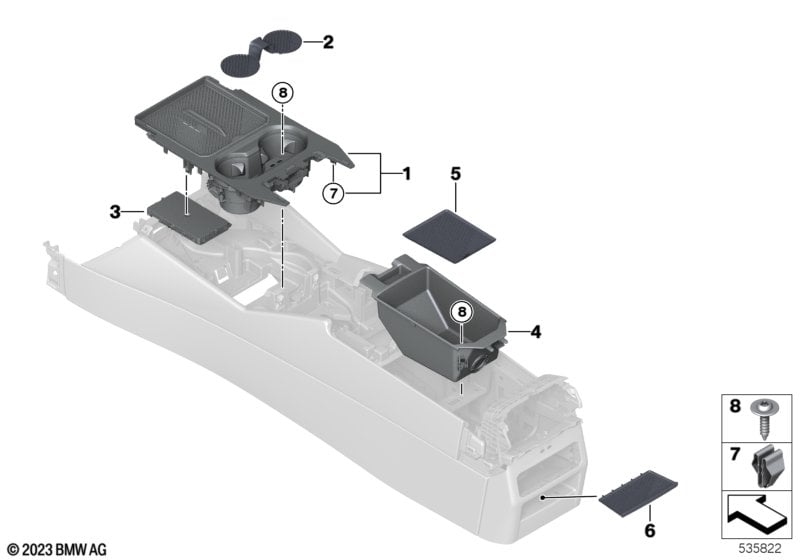

This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=No |
|||||||||
| 01 | Storage compartment, front | 1 | 51165A854F9 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=Yes |
|||||||||
| 01 | Storage compartment, front | 1 | 51165A854F6 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=No |
|||||||||
| 01 | Storage compartment, front | 1 | 51165A854F6 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=Yes |
|||||||||
| 01 | Storage compartment, front | 1 | 51165A854F6 | Shop at ECS Tuning | ||||||
| 02 | Rubber insert, cup holder | 1 | 51165A13165 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Storage tray for wireless charging |
S6NXA=No |
|||||||||
| 03 | Dummy trim center console storage compt | 1 | 51165A2BC20 | NoS | Shop at ECS Tuning | |||||
| 04 | Storage tray, armrest | 1 | 07/2024 | 51165B36D82 | NoS | Shop at ECS Tuning | ||||
| 05 | Insert mat for center armrest | 1 | 51165A13181 | NoS | Shop at ECS Tuning | |||||
| 06 | Insert mat storage compartment rear | SCHWARZ | 1 | 51165A371D1 | NoS | Shop at ECS Tuning | ||||
| 07 | Clamp | 5 | 07147321144 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | DELTA PT4X16 | 4 | 07149197038 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
