Armrest, centre console for BMW 5 Series G90 M5 M5 (2025)

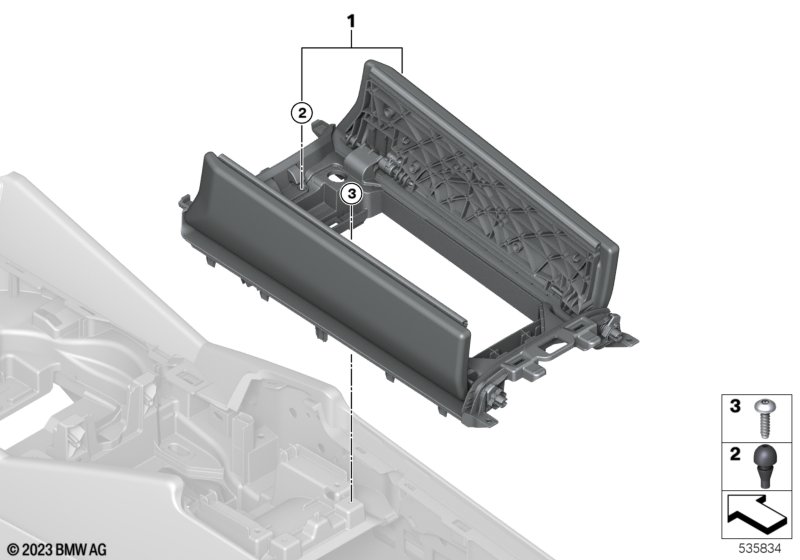

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood, dark oak, high-gloss and Carbon Fiber and silver thread, high-gl. and Leather "Merino"/schwarz |
S43LA=No S43PA=No LKSW=Yes |
|||||||||
| 01 | Armrest, centre console | SCHWARZ | 1 | 51165A4AFB4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine wood, dark oak, high-gloss and Carbon Fiber and silver thread, high-gl. and Leather "Merino"/schwarz |
S43LA=Yes S43PA=Yes LKSW=Yes |
|||||||||
| 01 | Armrest, center console, leather | SCHWARZ | 1 | 51165A4AFA0 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood, dark oak, high-gloss and Carbon Fiber and silver thread, high-gl. and Leather "Merino"/schwarz |
S43LA=Yes S43PA=No LKSW=Yes |
|||||||||
| 01 | Armrest, center console, leather | SCHWARZ | 1 | 51165A4AFA0 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood, dark oak, high-gloss and Carbon Fiber and silver thread, high-gl. and Leather "Merino"/schwarz |
S43LA=No S43PA=Yes LKSW=Yes |
|||||||||
| 01 | Armrest, center console, leather | SCHWARZ | 1 | 51165A4AFA0 | Shop at ECS Tuning | |||||
| For vehicles with Leather Merino/Silverstone/black or Leather 'Merino' red/black or Leather Merino/Kyalami orange/black |
LKIA=Yes LKKG=Yes LKKX=Yes |
|||||||||
| 01 | Armrest, center console, leather | SCHWARZ | 1 | 51165A4AFA0 | NoS | Shop at ECS Tuning | ||||
| 02 | Kit ribber buffer center armrest | 1 | 51165A38974 | NoS | Shop at ECS Tuning | |||||
| 03 | Torx screw | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
