Left trunk trim for BMW 5 Series G60 Sedan 520i (2025)

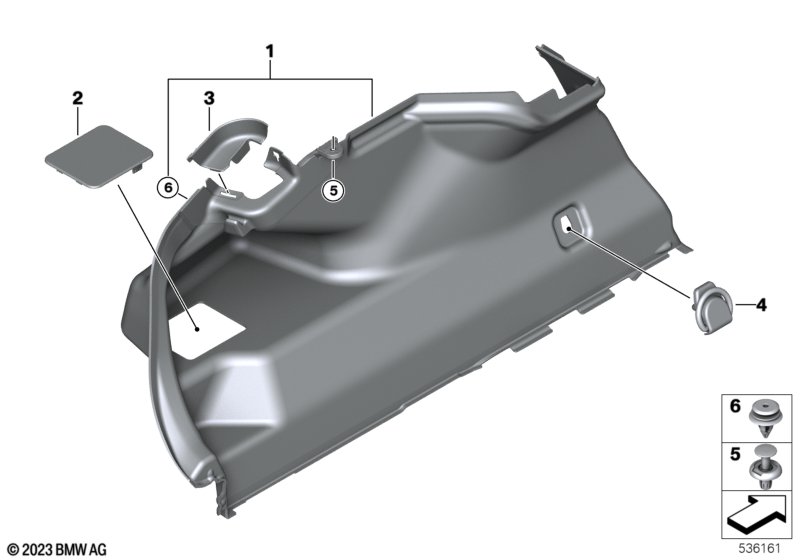

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Additional energy supply |
S146A=Yes |
||||||||
| 01 | Luggage compartment trim panel left | 1 | 51477888773 | NoS | Shop at ECS Tuning | |||||
| 02 | Service lid, left | 1 | 51477889989 | NoS | Shop at ECS Tuning | |||||
| 03 | Cover panel for hinge left | 1 | 51475A11DA7 | NoS | Shop at ECS Tuning | |||||
| 04 | Tie-down ring | 2 | 51477438824 | Shop at ECS Tuning | ||||||
| 05 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 06 | Clip Natur | 1 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Left trunk trim?
- This technical diagram illustrates the Left trunk trim within the Vehicle trim group for the 5 Series G60 Sedan 520i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Luggage compartment trim panel left (Part #51477888773).
- Which models use the hardware listed in this Left trunk trim?
- The hardware and components featured in the Left trunk trim are specific to the 5 Series G60 Sedan 520i produced during 2025. These technical specifications ensure that parts like the Luggage compartment trim panel left (51477888773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Left trunk trim assembly?
- Each item in the Left trunk trim corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Luggage compartment trim panel left by locating its position on the schematic, which then links to the official BMW part number 51477888773 for the Vehicle trim section.
