Left trunk trim for BMW 5 Series G60 Sedan 530e (2025)

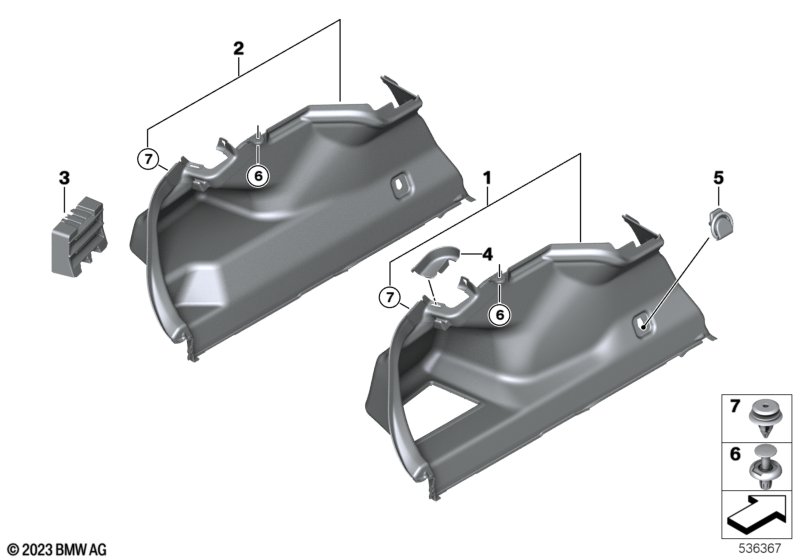

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=No S6F4A=No |
|||||||||
| 01 | Luggage compartment trim panel left | 1 | 51475A01787 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=Yes S6F4A=Yes |
|||||||||
| 02 | Luggage compartment trim panel left | 1 | 51475A16B11 | Shop at ECS Tuning | ||||||
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=Yes S6F4A=No |
|||||||||
| 02 | Luggage compartment trim panel left | 1 | 51475A16B11 | Shop at ECS Tuning | ||||||
| For vehicles with Additional energy supply and Bowers & Wilkins Surround Sound System |
S146A=No S6F4A=Yes |
|||||||||
| 02 | Luggage compartment trim panel left | 1 | 51475A16B11 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins Surround Sound System |
S6F4A=Yes |
|||||||||
| 03 | Air duct relocated | 1 | 51475A24AA6 | Shop at ECS Tuning | ||||||
| For vehicles with M sports suspension Professional |
S2VWA=No |
|||||||||
| 03 | Air duct relocated | 1 | 51475A24AA6 | NoS | Shop at ECS Tuning | |||||
| 05 | Tie-down ring | 2 | 51477438824 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
