Trim panel dashboard for BMW 1 Series F40 120i (2022)

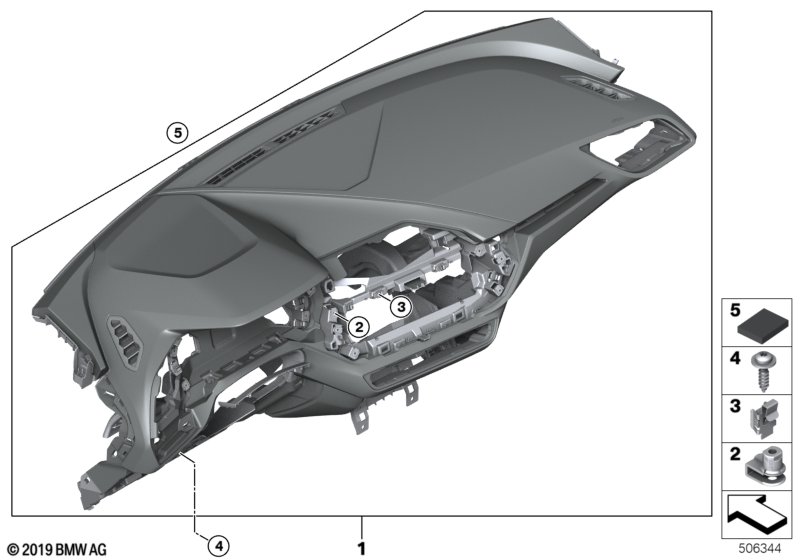

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.

Trim panel dashboard
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Sensatec anthracite / orange
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=Yes

S688A=Yes

KFIX=Yes
01 I.panel with orange ornamental seam SCHWARZ/SCHWARZ 1 51456968543 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Sensatec anthracite / orange
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=Yes

S688A=Yes

KFIX=Yes
01 I.panel, HUD with orange ornamental seam SCHWARZ/SCHWARZ 1 51456969614 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Leather 'Dakota' perforated/mocca
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=Yes

S688A=Yes

PDMY=Yes
01 I.panel with ornamental seam, walnut SCHWARZ/SCHWARZ 1 51456968542 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Sensatec anthracite / orange
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=No

S688A=No

KFIX=Yes
01 I.panel, HUD with orange ornamental seam SCHWARZ/SCHWARZ 1 51456968549 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Leather 'Dakota' perforated/mocca
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=No

S688A=No

PDMY=Yes
01 I.panel with ornamental seam, walnut SCHWARZ/SCHWARZ 1 51456963587 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Sensatec anthracite / orange
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=No

S688A=No

KFIX=Yes
01 I.panel with orange ornamental seam SCHWARZ/SCHWARZ 1 51456963588 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
Leather 'Dakota' perforated/mocca
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=No

S688A=No

PDMY=Yes
01 I.panel HUD with ornamental seam, walnut SCHWARZ/SCHWARZ 1 51456968548 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=No

S688A=No

LCEF=Yes

LCRS=Yes
01 I.panel, HUD with ornamental seam, blue SCHWARZ/SCHWARZ 1 51459632486 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=Yes

S688A=Yes

LCEF=Yes

LCRS=Yes
01 I.panel with ornamental seam blue SCHWARZ/SCHWARZ 1 51459632488 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=Yes

S688A=Yes

LCEF=Yes

LCRS=Yes
01 I.panel, HUD with ornamental seam, blue SCHWARZ/SCHWARZ 1 51459632476 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=No

S688A=No

LCEF=Yes

LCRS=Yes
01 I.panel with ornamental seam blue SCHWARZ/SCHWARZ 1 51459632484 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Trigon Alcantara / black
  or
  Cloth, Trigon / Sensatec Black
  or
  Leather Dakota perforated/black/blue acc
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=No

S688A=No

HLSW=Yes

KKSW=Yes

PDN4=Yes
01 I.panel with ornamental seam blue SCHWARZ/SCHWARZ 1 51456963589 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Trigon Alcantara / black
  or
  Cloth, Trigon / Sensatec Black
  or
  Leather Dakota perforated/black/blue acc
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=No

S688A=No

HLSW=Yes

KKSW=Yes

PDN4=Yes
01 I.panel, HUD with ornamental seam, blue SCHWARZ/SCHWARZ 1 51456968550 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Trigon Alcantara / black
  or
  Cloth, Trigon / Sensatec Black
  or
  Leather Dakota perforated/black/blue acc
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=Yes

S688A=Yes

HLSW=Yes

KKSW=Yes

PDN4=Yes
01 I.panel with ornamental seam blue SCHWARZ/SCHWARZ 1 51456968544 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Trigon Alcantara / black
  or
  Cloth, Trigon / Sensatec Black
  or
  Leather Dakota perforated/black/blue acc
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=Yes

S688A=Yes

HLSW=Yes

KKSW=Yes

PDN4=Yes
01 I.panel, HUD with ornamental seam, blue SCHWARZ/SCHWARZ 1 51456969615 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/black
  or
  Sensatec anthracite / gray
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather, Dakota, ventilated black
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=No

S688A=No

KCSW=Yes

KFL1=Yes

PDFM=Yes

PDSW=Yes
01 I.panel with gray ornamental seam SCHWARZ/SCHWARZ 1 51456963585 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/black
  or
  Sensatec anthracite / gray
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather, Dakota, ventilated black
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=No

S676A=Yes

S688A=Yes

KCSW=Yes

KFL1=Yes

PDFM=Yes

PDSW=Yes
01 I.panel with gray ornamental seam SCHWARZ/SCHWARZ 1 51456968540 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/black
  or
  Sensatec anthracite / gray
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather, Dakota, ventilated black
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=No

S688A=No

KCSW=Yes

KFL1=Yes

PDFM=Yes

PDSW=Yes
01 I.panel, HUD with gray ornamental seam SCHWARZ/SCHWARZ 1 51456968546 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Sensatec/black
  or
  Sensatec anthracite / gray
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather, Dakota, ventilated black
P337A=Yes

P7ACA=Yes

P7E8A=Yes

S610A=Yes

S676A=Yes

S688A=Yes

KCSW=Yes

KFL1=Yes

PDFM=Yes

PDSW=Yes
01 I.panel, HUD with gray ornamental seam SCHWARZ/SCHWARZ 1 51456968553 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Grid/anthracite
  or
  Fabric Trigon Alcantara / black
  or
  Sensatec/oyster
  or
  Sensatec/black
  or
  Sensatec anthracite / orange
  or
  Sensatec anthracite / gray
  or
  Cloth, Trigon / Sensatec Black
  or
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather 'Dakota' perforated/mocca
  or
  Leather Dakota perforated/black/blue acc
  or
  Leather Dakota perf./oyster/gray acc.
  or
  Leather, Dakota, ventilated black
P337A=No

P7ACA=No

P7E8A=No

S610A=No

S676A=No

S688A=No

EGAT=Yes

HLSW=Yes

KCCX=Yes

KCSW=Yes

KFIX=Yes

KFL1=Yes

KKSW=Yes

LCEF=Yes

LCRS=Yes

PDFM=Yes

PDMY=Yes

PDN4=Yes

PDOA=Yes

PDSW=Yes
01 Instrument panel without ornamental seam SCHWARZ/SCHWARZ 1 51456962266 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Grid/anthracite
  or
  Fabric Trigon Alcantara / black
  or
  Sensatec/oyster
  or
  Sensatec/black
  or
  Sensatec anthracite / orange
  or
  Sensatec anthracite / gray
  or
  Cloth, Trigon / Sensatec Black
  or
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather 'Dakota' perforated/mocca
  or
  Leather Dakota perforated/black/blue acc
  or
  Leather Dakota perf./oyster/gray acc.
  or
  Leather, Dakota, ventilated black
P337A=No

P7ACA=No

P7E8A=No

S610A=Yes

S676A=Yes

S688A=Yes

EGAT=Yes

HLSW=Yes

KCCX=Yes

KCSW=Yes

KFIX=Yes

KFL1=Yes

KKSW=Yes

LCEF=Yes

LCRS=Yes

PDFM=Yes

PDMY=Yes

PDN4=Yes

PDOA=Yes

PDSW=Yes
01 I.panel, HUD without ornamental seam SCHWARZ/SCHWARZ 1 51456962269 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Grid/anthracite
  or
  Fabric Trigon Alcantara / black
  or
  Sensatec/oyster
  or
  Sensatec/black
  or
  Sensatec anthracite / orange
  or
  Sensatec anthracite / gray
  or
  Cloth, Trigon / Sensatec Black
  or
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather 'Dakota' perforated/mocca
  or
  Leather Dakota perforated/black/blue acc
  or
  Leather Dakota perf./oyster/gray acc.
  or
  Leather, Dakota, ventilated black
P337A=No

P7ACA=No

P7E8A=No

S610A=No

S676A=Yes

S688A=Yes

EGAT=Yes

HLSW=Yes

KCCX=Yes

KCSW=Yes

KFIX=Yes

KFL1=Yes

KKSW=Yes

LCEF=Yes

LCRS=Yes

PDFM=Yes

PDMY=Yes

PDN4=Yes

PDOA=Yes

PDSW=Yes
01 Instrument panel without ornamental seam SCHWARZ/SCHWARZ 1 51456962267 NoS Shop at ECS Tuning
For vehicles with
  M Sports package
  and
  Sport Line
  and
  EDITION COLORVISION
  and
  Head-up display
  and
  HiFi speaker system
  and
  Harman/Kardon Surround Sound system
and
  Fabric Grid/anthracite
  or
  Fabric Trigon Alcantara / black
  or
  Sensatec/oyster
  or
  Sensatec/black
  or
  Sensatec anthracite / orange
  or
  Sensatec anthracite / gray
  or
  Cloth, Trigon / Sensatec Black
  or
  LEATHER DAKOTA BLACK/IVORY WHITE
  or
  LEATHER DAKOTA BLACK/RED
  or
  Leather Dakota perforat.magma red/sheen
  or
  Leather 'Dakota' perforated/mocca
  or
  Leather Dakota perforated/black/blue acc
  or
  Leather Dakota perf./oyster/gray acc.
  or
  Leather, Dakota, ventilated black
P337A=No

P7ACA=No

P7E8A=No

S610A=Yes

S676A=No

S688A=No

EGAT=Yes

HLSW=Yes

KCCX=Yes

KCSW=Yes

KFIX=Yes

KFL1=Yes

KKSW=Yes

LCEF=Yes

LCRS=Yes

PDFM=Yes

PDMY=Yes

PDN4=Yes

PDOA=Yes

PDSW=Yes
01 I.panel, HUD without ornamental seam SCHWARZ/SCHWARZ 1 51456962268 NoS Shop at ECS Tuning
02 C-clip for plastic nut 17 07149200938 Shop at ECS Tuning
03 Clamp 11 07149213384 $1.38 Shop at ECS Tuning
04 Fillister head self-tapp.screw w collar ISA 4,2X19 17 07148263913 $0.18 Shop at ECS Tuning
05 Set felt strip self-adhesive 1 51452353024 Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)

See Also

GLAZING GLAZING
WINDOW MOUNTING PARTS WINDOW MOUNTING PARTS
OUTSIDE MIRROR OUTSIDE MIRROR
EXTERIOR MIRROR (S760A) EXTERIOR MIRROR (S760A)
MIRROR GLASS MIRROR GLASS
OUTSIDE MIRROR OUTSIDE MIRROR
EXTERIOR MIRROR (S760A) EXTERIOR MIRROR (S760A)
DOOR WINDOW LIFTING MECHANISM FRONT DOOR WINDOW LIFTING MECHANISM FRONT
TRIM AND SEALS FOR DOOR, FRONT TRIM AND SEALS FOR DOOR, FRONT
LOCKING SYSTEM, DOOR, FRONT LOCKING SYSTEM, DOOR, FRONT
DOOR WINDOW LIFTING MECHANISM REAR DOOR WINDOW LIFTING MECHANISM REAR
TRIM AND SEALS FOR DOOR, REAR TRIM AND SEALS FOR DOOR, REAR
CLOSING SYSTEM, DOOR, REAR CLOSING SYSTEM, DOOR, REAR
AIR DUCTS AIR DUCTS
TRIM COVER, FRONT TRIM COVER, FRONT
M TRIM, FRONT M TRIM, FRONT
M TRIM DECOR ELEMENTS, FRONT M TRIM DECOR ELEMENTS, FRONT
CARRIER, FRONT CARRIER, FRONT
TRIM, DECOR ELEMENTS, FRONT TRIM, DECOR ELEMENTS, FRONT
INSTALLATION KIT, BUMPER INSTALLATION KIT, BUMPER

Frequently Asked Questions

What assembly is shown in the BMW 1 Series F40 120i Trim panel dashboard?
This technical diagram illustrates the Trim panel dashboard within the Vehicle trim group for the 1 Series F40 120i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the I.panel with orange ornamental seam (Part #51456968543).
Which models use the hardware listed in this Trim panel dashboard?
The hardware and components featured in the Trim panel dashboard are specific to the 1 Series F40 120i produced during 2022. These technical specifications ensure that parts like the I.panel with orange ornamental seam (51456968543) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Trim panel dashboard assembly?
Each item in the Trim panel dashboard corresponds to the numbered list below the illustration. For the 1 Series F40 120i, you can identify the I.panel with orange ornamental seam by locating its position on the schematic, which then links to the official BMW part number 51456968543 for the Vehicle trim section.
