M Trim, rear for BMW 5 Series G68 Sedan 530LiX (2025)

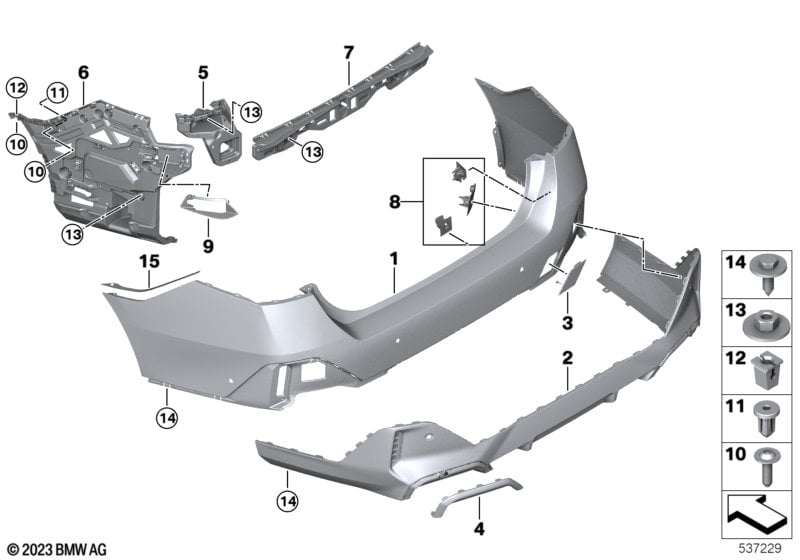

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
||||||||
| 01 | Trim panel bumper, primered rear | M CHN | 1 | 51128465334 | Shop at ECS Tuning | |||||
| 02 | Bumper cover rear lower | M CHN | 1 | 51125A37930 | Shop at ECS Tuning | |||||
| 03 | Cover for towing eye primed | M CHN | 1 | 51128465332 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | Trim, exhaust system, Dark Shadow, left | M CHN | 1 | 03/2025 | 51125B5E631 | Shop at ECS Tuning | ||||
| 04 | Trim, exhaust system, Dark Shadow, right | M CHN | 1 | 03/2025 | 51125B5E632 | Shop at ECS Tuning | ||||
| For vehicles with National version China and EXTERIOR TRIM IN TITANIUM BRONZE |
L8AAA=No S3L7A=Yes |
|||||||||
| 04 | Trim, exhaust system, Titanium, le | M CHN | 1 | 03/2025 | 51125A54C31 | Shop at ECS Tuning | ||||
| 04 | Trim, exhaust system, Titanium, ri | M CHN | 1 | 03/2025 | 51125A54C32 | Shop at ECS Tuning | ||||
| For vehicles with National version China and EXTERIOR TRIM IN TITANIUM BRONZE |
L8AAA=No S3L7A=No |
|||||||||
| 04 | Trim, exhaust system, pearl lustre, left | M CHN | 1 | 03/2025 | 51125A37957 | Shop at ECS Tuning | ||||
| 04 | Trim, ex system, pearl lustre, right | M CHN | 1 | 03/2025 | 51125A37958 | Shop at ECS Tuning | ||||
| 05 | Mount corner section left | CHN | 1 | 51125A83E81 | Shop at ECS Tuning | |||||
| 05 | Mount corner section right | CHN | 1 | 51128465506 | Shop at ECS Tuning | |||||
| 06 | Bumper bracket rear left | CHN | 1 | 51125A40447 | Shop at ECS Tuning | |||||
| 06 | Bumper bracket right rear | CHN | 1 | 51125A40448 | Shop at ECS Tuning | |||||
| 07 | Mount, bumper, rear center | CHN | 1 | 51128465433 | Shop at ECS Tuning | |||||
| 08 | Kit mount PDC sensor | M CHN | 1 | 51128465336 | Shop at ECS Tuning | |||||
| 09 | Absorber funnel, left | M CHN | 1 | 51125A3C833 | Shop at ECS Tuning | |||||
| 09 | Absorber funnel, right | M CHN | 1 | 51125A3C834 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | ST5X17-ZNS3 | 12 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Plug-in nut | 8 | 51127461407 | Shop at ECS Tuning | ||||||
| 12 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Combination nut | 15 | 07147305178 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| 15 | Protective film, rear bumper left | 1 | 51125A83B61 | Shop at ECS Tuning | ||||||
| 15 | Protective film, right rear bumper | 1 | 51125A83B62 | Shop at ECS Tuning | ||||||
