Outside mirror for BMW 5 Series G61 Touring 530e (2025)

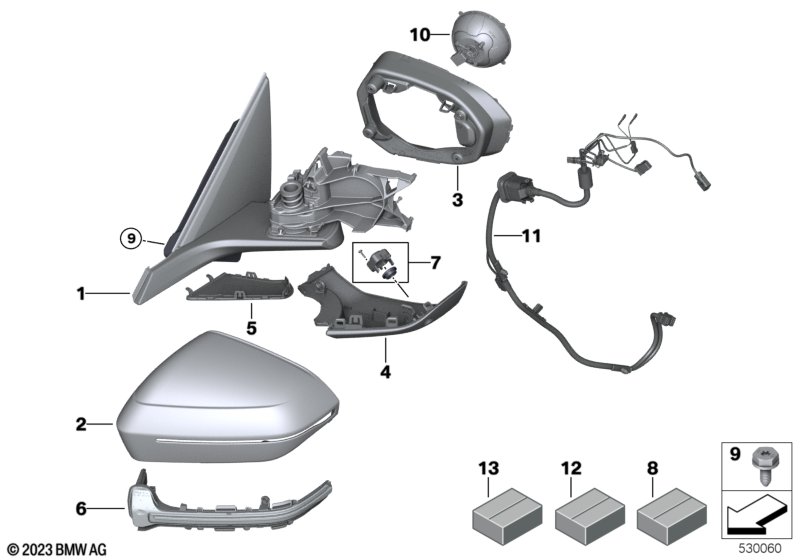

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with High gloss shadow line |
S760A=No |
|||||||||
| 01 | Exterior mirror without add-ons left | ALU SATIN | 1 | 51165A841A5 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror without add-ons right | ALU SATIN | 1 | 51165A841A6 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 01 | Exterior mirror without add-ons left | SHADOW-LINE | 1 | 51165A841A1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Exterior mirror without add-ons right | SHADOW-LINE | 1 | 51165A841A2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 02 | Mirror cap, primed, left | 1 | 51165A351E7 | Shop at ECS Tuning | ||||||
| 02 | Mirror cap primed right | 1 | 51165A351E8 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 02 | Mirror cap CFRP | 1 | 51167883949 | Shop at ECS Tuning | ||||||
| 02 | Mirror cap CFRP | 1 | 51167883950 | Shop at ECS Tuning | ||||||
| 03 | Retaining ring BMW Shadow Line left | 1 | 51169451955 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 03 | Retaining ring BMW Shadow Line right | 1 | 51169451956 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and Parking assistant professional |
S3MBA=No S5DNA=Yes S5DWA=Yes |
|||||||||
| 04 | Lower housing section top view left | SHADOW-LINE | 1 | 51165A356A3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | SHADOW-LINE | 1 | 51165A356A4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and Parking assistant professional |
S3MBA=No S5DNA=Yes S5DWA=No |
|||||||||
| 04 | Lower housing section top view left | SHADOW-LINE | 1 | 51165A356A3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | SHADOW-LINE | 1 | 51165A356A4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and Parking assistant professional |
S3MBA=No S5DNA=No S5DWA=Yes |
|||||||||
| 04 | Lower housing section top view left | SHADOW-LINE | 1 | 51165A356A3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | SHADOW-LINE | 1 | 51165A356A4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium and Parking assistance system Plus and Parking assistant professional |
S3MBA=No S5DNA=No S5DWA=No |
|||||||||
| 04 | Lower housing section basic left | SHADOW-LINE | 1 | 51165A35697 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section basic right | SHADOW-LINE | 1 | 51165A35698 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=Yes S5DWA=Yes S760A=No |
|||||||||
| 04 | Lower housing section top view left | ALU SATIN | 1 | 51165A841C1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | ALU SATIN | 1 | 51165A841C2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=Yes S5DWA=No S760A=No |
|||||||||
| 04 | Lower housing section top view left | ALU SATIN | 1 | 51165A841C1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | ALU SATIN | 1 | 51165A841C2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=No S5DWA=Yes S760A=No |
|||||||||
| 04 | Lower housing section top view left | ALU SATIN | 1 | 51165A841C1 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section top view right | ALU SATIN | 1 | 51165A841C2 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus and Parking assistant professional and High gloss shadow line |
S5DNA=No S5DWA=No S760A=No |
|||||||||
| 04 | Lower housing section basic left | ALU SATIN | 1 | 51165A841B5 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Lower housing section basic right | ALU SATIN | 1 | 51165A841B6 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| 05 | Kit, mirror base caps | 1 | 51165A84269 | Shop at ECS Tuning | ||||||
| 06 | Side repeater exterior mirror left | 1 | 51169451949 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 06 | Side repeater exterior mirror right | 1 | 51169451950 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| 07 | Camera holder | 1 | 51165A356A0 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| 09 | Hexagon screw, self-threading | M6X19 | 6 | 07147482347 | Shop at ECS Tuning | |||||
| 10 | Drive, outside mirror | 2 | 67135A292C7 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51165A356A9 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 | 1 | 51165A383C5 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 | 1 | 51165A383C6 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 | 1 | 51165A383C5 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 | 1 | 51165A383C6 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=Yes S5DNA=No S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 | 1 | 51165A383C5 | NoS | Shop at ECS Tuning | ||||
| 11 | Wiring harness passenger's side | HC2 | 1 | 51165A383C6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=No S5DNA=No S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC | 1 | 51165A383C3 | NoS | Shop at ECS Tuning | ||||
| 11 | Wiring harness passenger's side | 1 | 51165A383C4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=No S5DNA=Yes S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC CAM | 1 | 51165A383C7 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | CAM | 1 | 51165A383C8 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=No S5DNA=Yes S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC CAM | 1 | 51165A383C7 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | CAM | 1 | 51165A383C8 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=No S5DNA=No S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC CAM | 1 | 51165A383C7 | NoS | Shop at ECS Tuning | ||||
| 11 | Wiring harness passenger's side | CAM | 1 | 51165A383C8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=Yes S5DNA=Yes S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=Yes S5DNA=Yes S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=Yes S5DNA=No S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=No S5DNA=Yes S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=No S5DNA=Yes S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=Yes S5AUA=No S5DNA=No S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=Yes S5DNA=Yes S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=Yes S5DNA=Yes S5DWA=No |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | Shop at ECS Tuning | |||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Parking assistance system Plus and Parking assistant professional |
S5ASA=No S5AUA=Yes S5DNA=No S5DWA=Yes |
|||||||||
| 11 | Wiring harness driver's side | EC HC2 CAM | 1 | 51165A383C9 | NoS | Shop at ECS Tuning | ||||
| 11 | Wiring harness passenger's side | HC2 CAM | 1 | 51165A383D0 | NoS | Shop at ECS Tuning | ||||
| 12 | Repair kit, wiring harness | HC2 | 1 | 51165A84197 | Shop at ECS Tuning | |||||
| 12 | Repair kit, wiring harness, SATCAM | HC2 SAT | 1 | 51165A84198 | Shop at ECS Tuning | |||||
| 13 | Repair kit, wiring harness | 1 | 51165A29AF6 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
