Trim panel A- / B- / C- / D-Column for BMW 5 Series G61 Touring 520dX (2025)

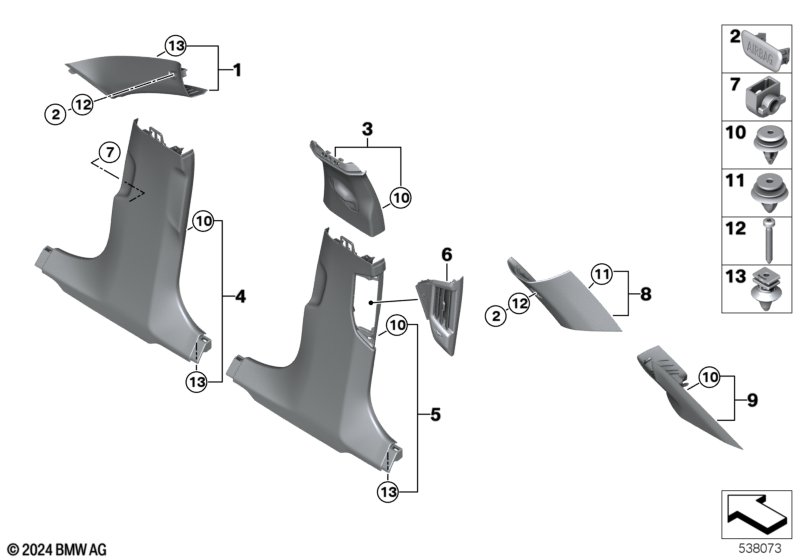

This Trim panel A- / B- / C- / D-Column technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headliner in Alcantara anthracite |
S776A=Yes |
|||||||||
| 01 | Left column A cover | SCHWARZ | 1 | 51449504309 | NoS | Shop at ECS Tuning | ||||
| 01 | Right column A cover | SCHWARZ | 1 | 51449504310 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 01 | A-pillar trim panel left | ANTHRAZIT | 1 | 51439504297 | NoS | Shop at ECS Tuning | ||||
| 01 | A-pillar trim panel right | ANTHRAZIT | 1 | 51439504298 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S775A=No S776A=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 01 | A-pillar trim panel left | ATLASGRAU | 1 | 51435A408D1 | NoS | Shop at ECS Tuning | ||||
| 01 | A-pillar trim panel right | ATLASGRAU | 1 | 51435A408D2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 02 | Cover cap airbag | SCHWARZ | 4 | 51437903774 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 02 | Cover cap airbag | SCHWARZ | 4 | 51437903774 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=No S776A=Yes |
|||||||||
| 02 | Cover cap airbag | SCHWARZ | 4 | 51437903774 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S775A=No S776A=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 02 | Cover cap airbag | ATLASGRAU | 4 | 51435A408B7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headliner in Alcantara anthracite |
S776A=Yes |
|||||||||
| 03 | Cover, B-column upper left | SCHWARZ | 1 | 51449504311 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, B-column upper right | SCHWARZ | 1 | 51449504312 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 03 | B-pillar trim panel upper left | ANTHRAZIT | 1 | 51439504299 | NoS | Shop at ECS Tuning | ||||
| 03 | B-pillar trim panel upper right | ANTHRAZIT | 1 | 51439504300 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S775A=No S776A=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 03 | B-pillar trim panel upper left | ATLASGRAU | 1 | 51435A408C3 | NoS | Shop at ECS Tuning | ||||
| 03 | B-pillar trim panel upper right | ATLASGRAU | 1 | 51435A408C4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S4NBA=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 04 | B-pillar trim panel bottom left | SCHWARZ | 1 | 51435B31009 | NoS | Shop at ECS Tuning | ||||
| 04 | B-pillar trim panel bottom right | SCHWARZ | 1 | 51435B31010 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S4NBA=Yes KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 05 | B-pillar trim panel bottom left | SCHWARZ | 1 | 51435B31013 | NoS | Shop at ECS Tuning | ||||
| 05 | B-pillar trim panel bottom right | SCHWARZ | 1 | 51435B31014 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 06 | Air vent B-pillar left | 1 | 51435A24623 | NoS | Shop at ECS Tuning | |||||
| 06 | Air vent B-pillar right | 1 | 51435A24624 | NoS | Shop at ECS Tuning | |||||
| 07 | Adapter B-pillar | 2 | 51435A5EE48 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Headliner in Alcantara anthracite |
S776A=Yes |
|||||||||
| 08 | Cover column C left | ANTHRAZIT | 1 | 51437886623 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover column C right | ANTHRAZIT | 1 | 51437886624 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 08 | Cover column C left | ANTHRAZIT | 1 | 51437884327 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover column C right | ANTHRAZIT | 1 | 51437884328 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S775A=No S776A=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 08 | Cover column C left | ATLASGRAU | 1 | 51435A626A1 | NoS | Shop at ECS Tuning | ||||
| 08 | Cover column C right | ATLASGRAU | 1 | 51435A626A2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 09 | Cover, column D, left | ANTHRAZIT | 1 | 51437884329 | Shop at ECS Tuning | |||||
| 09 | Cover, column D, right | ANTHRAZIT | 1 | 51437884330 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 09 | Cover, column D, left | ANTHRAZIT | 1 | 51437884329 | Shop at ECS Tuning | |||||
| 09 | Cover, column D, right | ANTHRAZIT | 1 | 51437884330 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=No S776A=Yes |
|||||||||
| 09 | Cover, column D, left | ANTHRAZIT | 1 | 51437884329 | NoS | Shop at ECS Tuning | ||||
| 09 | Cover, column D, right | ANTHRAZIT | 1 | 51437884330 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
S775A=No S776A=No KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 09 | Cover, column D, left | ATLASGRAU | 1 | 51435A626A5 | NoS | Shop at ECS Tuning | ||||
| 09 | Cover, column D, right | ATLASGRAU | 1 | 51435A626A6 | NoS | Shop at ECS Tuning | ||||
| 10 | Clip Natur | 24 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Clip | 4 | 07145A54705 | Shop at ECS Tuning | ||||||
| 12 | Sheet metal screw | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Clip | 2 | 07147430771 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
