Sound insulating rear for BMW 5 Series G68 Sedan 530LiX (2025)

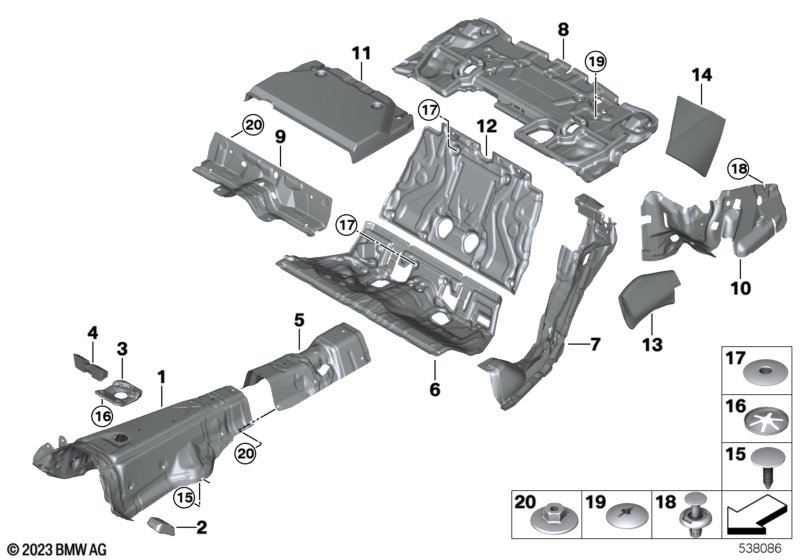

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation tunnel front | ICE | 1 | 51485A84219 | Shop at ECS Tuning | |||||
| 02 | Sound insulat., accelerator pedal mod. | 1 | 51489870827 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation, condensation drain | 1 | 51489870820 | Shop at ECS Tuning | ||||||
| 04 | Sound insulation for heater, top | 1 | 51489870819 | Shop at ECS Tuning | ||||||
| 05 | Sound insulating tunnel rear | 1 | 51485A0A221 | Shop at ECS Tuning | ||||||
| 06 | Sound insulation floor rear | 1 | 51485A0A240 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating wheel housing rear left | 1 | 51485A0A245 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating wheel housing rear rig. | 1 | 51485A0A246 | Shop at ECS Tuning | ||||||
| 08 | Sound ins, part pan, lugg comp, upper | 1 | 51485A0A247 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation trunk left | 1 | 51475A154B1 | NoS | Shop at ECS Tuning | |||||
| 10 | Sound insulation trunk right | 1 | 51475A154B2 | NoS | Shop at ECS Tuning | |||||
| 12 | Sound ins, part pan, lugg comp, lower | 1 | 51485A0A248 | Shop at ECS Tuning | ||||||
| 13 | Absorber, sidewall | 2 | 51487381211 | Shop at ECS Tuning | ||||||
| 14 | Sound insulation rear quarter panel left | 1 | 51475A157F1 | NoS | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 1 | 07147283890 | Shop at ECS Tuning | ||||||
| 16 | Axial securing clip | 5,8MM | 4 | 07147295776 | Shop at ECS Tuning | |||||
| 17 | Clip for ball attachment | 6 | 07147354230 | Shop at ECS Tuning | ||||||
| 18 | Expanding rivet | 5 | 07147401727 | Shop at ECS Tuning | ||||||
| 19 | Plug, black | D=6,35MM | 1 | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| 20 | Plastic nut | 50 | 07149381677 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
