Emblems / letterings for BMW 5 Series G68 Sedan 530Li (2025)

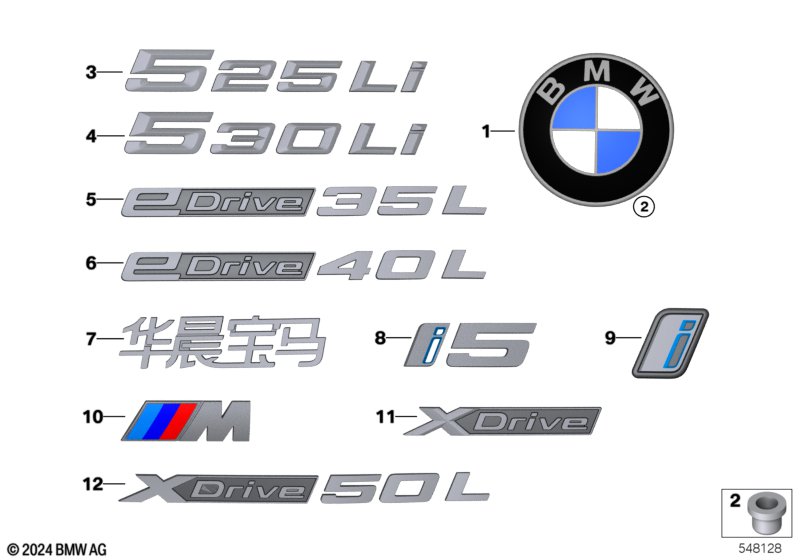

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147463684 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147499154 | Shop at ECS Tuning | |||||
| 02 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 04 | Label | 530LI | 1 | 51145A0C968 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 10 | Emblem side panel | M / PERLGLANZ | 2 | 51145A4CE12 | Shop at ECS Tuning | |||||
