Locking system, door, front for BMW 5 Series G68 Sedan 530Li (2025)

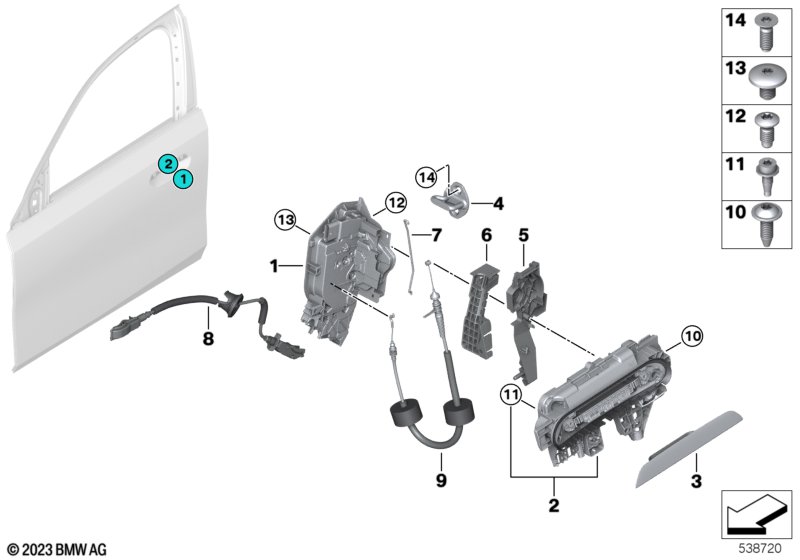

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock left | 1 | 51215A3C181 | Shop at ECS Tuning | ||||||
| 01 | Door lock right | 1 | 51215A3C184 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 02 | Carrier, outside door handle, right | 1 | 51215A6B636 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=No |
|||||||||
| 02 | Carrier, outside door handle, right | 1 | 51215A6B634 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=No S3DKA=No |
|||||||||
| 02 | Carrier, outside door handle, left | 1 | 51215A6B631 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=Yes |
|||||||||
| 02 | Carrier, outside door handle, left | 1 | 51215A6B627 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=No |
|||||||||
| 02 | Carrier, outside door handle, left | 1 | 51215A6B627 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=No S3DKA=Yes |
|||||||||
| 02 | Carrier, outside door handle, left | 1 | 51215A6B627 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Trim external door handle primed | 1 | 51215A6B6C4 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=No S3DKA=Yes |
|||||||||
| 03 | Trim external door handle primed | 1 | 51215A6B6C4 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=No |
|||||||||
| 03 | Trim external door handle primed right | CA | 1 | 51215A6B6D2 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trim external door handle primed right | CA | 1 | 51215B43564 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=No S3DKA=No |
|||||||||
| 03 | Trim external door handle primed | 2 | 51215A6B6C4 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=Yes |
|||||||||
| 03 | Trim external door handle primed left | NFC | 1 | 51215B43565 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=Yes S3DKA=No |
|||||||||
| 03 | Trim external door handle primed left | NFC | 1 | 51215B43565 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and BMW Digital Key |
S322A=No S3DKA=Yes |
|||||||||
| 03 | Trim external door handle primed left | NFC | 1 | 51215B43565 | Shop at ECS Tuning | |||||
| 04 | Striker with underlay | 2 | 51215A67B30 | Shop at ECS Tuning | ||||||
| 05 | Adapter outs.door handle support left | LL | 1 | 51215A53265 | NoS | Shop at ECS Tuning | ||||
| 06 | Adapter, support, left front | LL | 1 | 51215A53267 | NoS | Shop at ECS Tuning | ||||
| 07 | Locking rod left | LL | 1 | 51215A08A95 | NoS | Shop at ECS Tuning | ||||
| 08 | Bowden cable door handle front | 2 | 51215A08636 | Shop at ECS Tuning | ||||||
| 09 | Bowden cable outside door handle front | 2 | 51215A08634 | Shop at ECS Tuning | ||||||
| 10 | Socket head cap screw with shoulder | M5 | 1 | 07147154925 | $0.53 | Shop at ECS Tuning | ||||
| 11 | ISA screw | M4X10-PF-U1-8.8 | 1 | 07129909896 | Shop at ECS Tuning | |||||
| 12 | Countersunk head screw | 4 | 07149476994 | Shop at ECS Tuning | ||||||
| 13 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 14 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G68 Sedan 530Li Locking system, door, front?
- This technical diagram illustrates the Locking system, door, front within the Vehicle trim group for the 5 Series G68 Sedan 530Li produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Door lock left (Part #51215A3C181).
- Which models use the hardware listed in this Locking system, door, front?
- The hardware and components featured in the Locking system, door, front are specific to the 5 Series G68 Sedan 530Li produced during 2025. These technical specifications ensure that parts like the Door lock left (51215A3C181) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Locking system, door, front assembly?
- Each item in the Locking system, door, front corresponds to the numbered list below the illustration. For the 5 Series G68 Sedan 530Li, you can identify the Door lock left by locating its position on the schematic, which then links to the official BMW part number 51215A3C181 for the Vehicle trim section.
