M cover for rocker panel / wheel arch for BMW 5 Series G61 Touring 520d (2025)

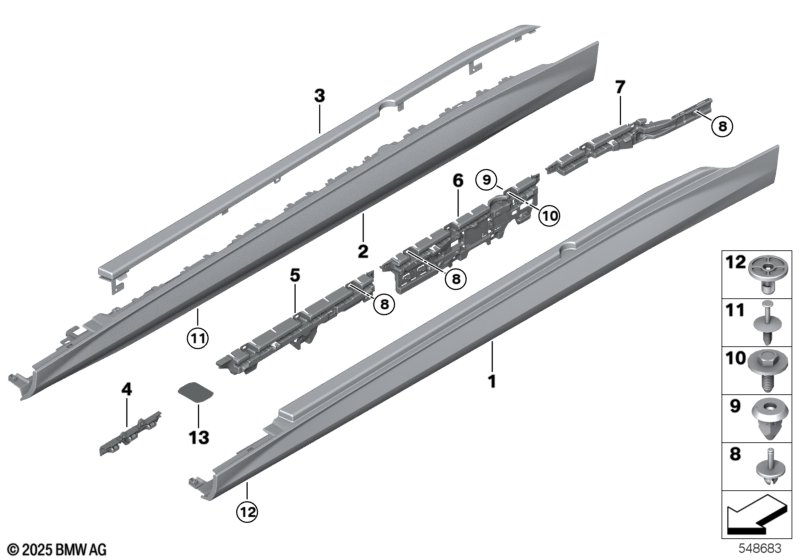

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Rocker panel cover left | - M - EINTEILIG | 1 | 51775A5A705 | Shop at ECS Tuning | |||||
| 01 | Rocker panel cover right | - M - EINTEILIG | 1 | 51775A5A706 | Shop at ECS Tuning | |||||
| 04 | Retaining strip rocker panel cover left | VORN | 1 | 51775A37261 | Shop at ECS Tuning | |||||
| 04 | Retaining strip rocker panel cover right | VORN | 1 | 51775A37262 | Shop at ECS Tuning | |||||
| 05 | Retaining strip rocker panel cover left | MITTE | 1 | 51775A1C2B7 | Shop at ECS Tuning | |||||
| 05 | Retaining strip rocker panel cover right | MITTE | 1 | 51775A1C2B8 | Shop at ECS Tuning | |||||
| 06 | Retaining strip rocker panel cover left | MITTE | 1 | 51775A1C2C3 | Shop at ECS Tuning | |||||
| 06 | Retaining strip rocker panel cover right | MITTE | 1 | 51775A1C2C4 | Shop at ECS Tuning | |||||
| 07 | Retaining strip rocker panel cover left | HINTEN | 1 | 51775A1C2C7 | Shop at ECS Tuning | |||||
| 07 | Retaining strip rocker panel cover right | HINTEN | 1 | 51775A1C2C8 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 40 | 07147213303 | Shop at ECS Tuning | ||||||
| 09 | Expanding nut | 8X8 MM | 4 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | L= 19.9MM | 10 | 07147306224 | Shop at ECS Tuning | |||||
