Support, instrument panel for BMW MINI Cabrio F67 JCW (2025)

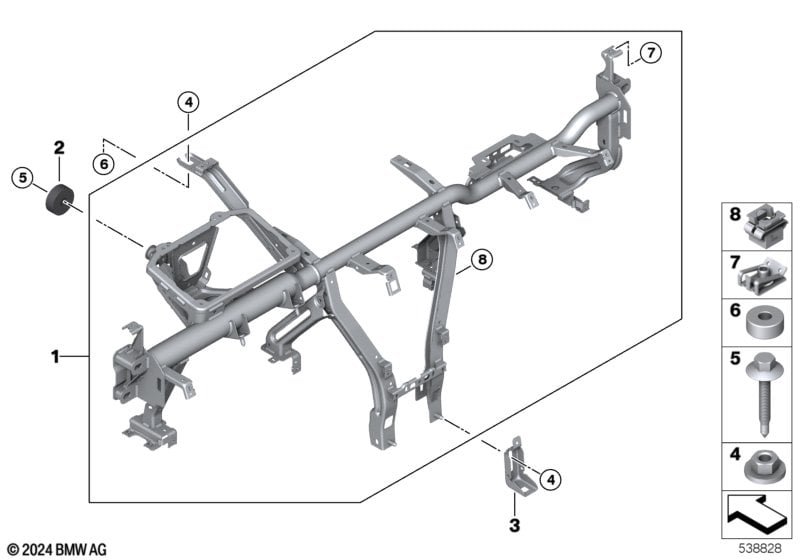

This Support, instrument panel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier instrument panel | 1 | 51459643211 | NoS | Shop at ECS Tuning | |||||
| 02 | Alignment element | 1 | 07149321593 | Shop at ECS Tuning | ||||||
| 03 | Bracket, tunnel brace, I-panel carrier | 2 | 51459269877 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M8 | 9 | 07149200945 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with flange | 1 | 07147135316 | $1.64 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 1 | 51459312760 | Shop at ECS Tuning | ||||||
| 07 | C-clip sheet metal nut | 18 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 08 | Clip for screw cap | 2 | 07149321590 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
