Door trim panel for BMW 4 Series G22 Coupé 420i (2024)

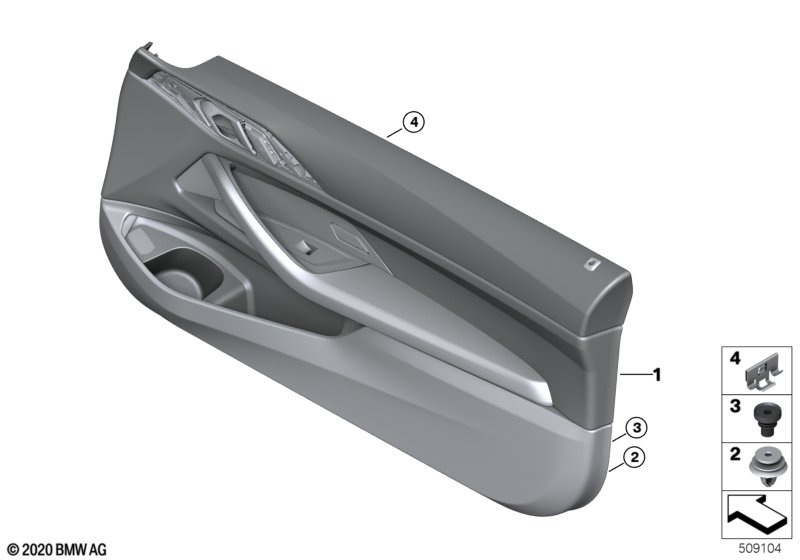

This Door trim panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The recesses for the tailgate button (HKL) must be installed using the special tool 83 30 2 444 403 (HKL). If necessary, a door exit light is to be installed at the bottom of the door trim panel. |
|||||||||
| For vehicles with Individual full leather, ivory white |
VBEW=Yes |
|||||||||
| 01 | Door trim panel right | ELFENBEINWEISS | 1 | 51417883452 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual full leather, ivory white Passenger's side |
VBEW=Yes |
|||||||||
| 01 | Door trim panel, front left | ELFENBEINWEISS | 1 | 51417884769 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual full leather, tartufo |
VBTQ=Yes |
|||||||||
| 01 | Door trim panel right | TARTUFO | 1 | 51417883450 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual full leather, tartufo Passenger's side |
VBTQ=Yes |
|||||||||
| 01 | Door trim panel, front left | TARTUFO | 1 | 51417884767 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual full leather, Fiona Red/black |
VBHZ=Yes |
|||||||||
| 01 | Door trim panel right | FIONAROT | 1 | 51417883454 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual full leather, Fiona Red/black Passenger's side |
VBHZ=Yes |
|||||||||
| 01 | Door trim panel, front left | FIONAROT/SCHWAR | 1 | 51417884771 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/Tacora red |
S4AWA=Yes KHG7=Yes |
|||||||||
| 01 | Door trim panel right | TACORAROT | 1 | 51415A2C484 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/Tacora red Passenger's side |
S4AWA=Yes KHG7=Yes |
|||||||||
| 01 | Door trim panel left | TACORAROT | 1 | 51415A35BF5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Fabric sensatec./ black |
S4AWA=Yes KFSW=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A2B016 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Fabric sensatec./ black Passenger's side |
S4AWA=Yes KFSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A34313 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Vernasca/mocca decor.stitching |
S4AWA=Yes MAMU=Yes |
|||||||||
| 01 | Door trim panel right | MOKKA | 1 | 51415A2C4F2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Vernasca/mocca decor.stitching Passenger's side |
S4AWA=Yes MAMU=Yes |
|||||||||
| 01 | Door trim panel, front left | MOKKA | 1 | 51415A35BF7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather, Vernasca, cognac, gy stitching |
S4M5A=Yes MAPQ=Yes |
|||||||||
| 01 | Door trim panel, front right | COGNAC | 1 | 51417883732 | NoS | Shop at ECS Tuning | ||||
| 01 | Left front door trim panel | COGNAC | 1 | 51417885199 | Shop at ECS Tuning | |||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/mocca decor.stitching |
S4M5A=Yes MAMU=Yes |
|||||||||
| 01 | Door trim panel right | MOKKA | 1 | 51417883726 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/mocca decor.stitching Passenger's side |
S4M5A=Yes MAMU=Yes |
|||||||||
| 01 | Door trim panel left | MOKKA | 1 | 51417884785 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Alcantara sensatec.black / blue |
S4AWA=Yes KGNL=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A2C494 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Alcantara sensatec.black / blue Passenger's side |
S4AWA=Yes KGNL=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A34321 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/canberra-beige |
S4AWA=Yes KCCY=Yes |
|||||||||
| 01 | Door trim panel right | CANBERRABEIGE | 1 | 51415A30946 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/canberra-beige Passenger's side |
S4AWA=Yes KCCY=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A35C37 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Merino tartufo |
S4AWA=No VATQ=Yes |
|||||||||
| 01 | Door trim panel right | TARTUFO | 1 | 51417883468 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/ oyster dec.stitching |
S4M5A=Yes MAOI=Yes |
|||||||||
| 01 | Door trim panel right | OYSTER | 1 | 51417883730 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/ oyster dec.stitching Passenger's side |
S4M5A=Yes MAOI=Yes |
|||||||||
| 01 | Door trim panel left | OYSTER | 1 | 51417884787 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather, Vernasca, black, gray stitching |
S4M5A=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51417883724 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather, Vernasca, black, gray stitching Passenger's side |
S4M5A=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51417884781 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather, Vernasca, black, blue stitching |
S4M5A=Yes MANL=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51417883728 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather, Vernasca, black, blue stitching Passenger's side |
S4M5A=Yes MANL=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51417884783 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/tacora red dec.stitch. |
S4M5A=Yes MAG6=Yes |
|||||||||
| 01 | Door trim panel right | TACORAROT | 1 | 51417883722 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Leather Vernasca/tacora red dec.stitch. Passenger's side |
S4M5A=Yes MAG6=Yes |
|||||||||
| 01 | Door trim panel left | TACORAROT | 1 | 51417884789 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Merino tartufo |
S4AWA=Yes VATQ=Yes |
|||||||||
| 01 | Door trim panel right | TARTUFO | 1 | 51417883714 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Merino tartufo Passenger's side |
S4AWA=Yes VATQ=Yes |
|||||||||
| 01 | Door trim panel, front left | TARTUFO | 1 | 51417884761 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Ind.leather extended/Fiona red/black |
S4AWA=Yes VAHZ=Yes |
|||||||||
| 01 | Door trim panel right | FIONAROT | 1 | 51417883718 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Ind.leather extended/Fiona red/black Passenger's side |
S4AWA=Yes VAHZ=Yes |
|||||||||
| 01 | Door trim panel, front left | FIONAROT/SCHWAR | 1 | 51417884765 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/black |
S4AWA=Yes KCSW=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A30944 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/black Passenger's side |
S4AWA=Yes KCSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A35C43 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather, Vernasca, black, blue stitching |
S4AWA=Yes MANL=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A2B018 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather, Vernasca, black, blue stitching Passenger's side |
S4AWA=Yes MANL=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A37297 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Vernasca/ oyster dec.stitching |
S4AWA=Yes MAOI=Yes |
|||||||||
| 01 | Door trim panel right | OYSTER | 1 | 51415A2C4F4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Vernasca/ oyster dec.stitching Passenger's side |
S4AWA=Yes MAOI=Yes |
|||||||||
| 01 | Door trim panel, front left | OYSTER | 1 | 51415A35C01 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Merino ivory white |
S4AWA=Yes VAEW=Yes |
|||||||||
| 01 | Door trim panel right | ELFENBEINWEISS | 1 | 51417883716 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Leather Merino ivory white Passenger's side |
S4AWA=Yes VAEW=Yes |
|||||||||
| 01 | Door trim panel, front left | ELFENBEINWEISS | 1 | 51417884763 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/canberra-beige |
S4AWA=Yes KCFY=Yes |
|||||||||
| 01 | Door trim panel right | CANBERRABEIGE | 1 | 51415A30948 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec/canberra-beige Passenger's side |
S4AWA=Yes KCFY=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A35C41 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/ oyster dec.stitching |
S4AWA=No S4M5A=No MAOI=Yes |
|||||||||
| 01 | Door trim panel, front right | OYSTER | 1 | 51415A33A02 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/ oyster dec.stitching Passenger's side |
S4AWA=No S4M5A=No MAOI=Yes |
|||||||||
| 01 | Door trim panel, front left | OYSTER | 1 | 51415A342D5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/tacora red dec.stitch. |
S4AWA=No S4M5A=No MAG6=Yes |
|||||||||
| 01 | Door trim panel, front right | TACORAROT | 1 | 51415A339F2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/tacora red dec.stitch. Passenger's side |
S4AWA=No S4M5A=No MAG6=Yes |
|||||||||
| 01 | Door trim panel left | TACORAROT | 1 | 51415A342C5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Alcantara sensatec.black / blue |
S4AWA=No S4M5A=No KGNL=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A33A08 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Alcantara sensatec.black / blue Passenger's side |
S4AWA=No S4M5A=No KGNL=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A342F5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather, Vernasca, black, blue stitching |
S4AWA=No S4M5A=No MANL=Yes |
|||||||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A339F8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather, Vernasca, black, blue stitching Passenger's side |
S4AWA=No S4M5A=No MANL=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51415A342D3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/mocca decor.stitching |
S4AWA=No S4M5A=No MAMU=Yes |
|||||||||
| 01 | Door trim panel, front right | MOKKA | 1 | 51415A339F6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Vernasca/mocca decor.stitching Passenger's side |
S4AWA=No S4M5A=No MAMU=Yes |
|||||||||
| 01 | Door trim panel, front left | MOKKA | 1 | 51415A342D1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Merino ivory white |
S4AWA=No S4M5A=No VAEW=Yes |
|||||||||
| 01 | Door trim panel right | ELFENBEINWEISS | 1 | 51417883470 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Merino ivory white Passenger's side |
S4AWA=No S4M5A=No VAEW=Yes |
|||||||||
| 01 | Door trim panel, front left | ELFENBEINWEISS | 1 | 51417884749 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Ind.leather extended/Fiona red/black |
S4AWA=No S4M5A=No VAHZ=Yes |
|||||||||
| 01 | Door trim panel right | FIONAROT | 1 | 51417883472 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Ind.leather extended/Fiona red/black Passenger's side |
S4AWA=No S4M5A=No VAHZ=Yes |
|||||||||
| 01 | Door trim panel, front left | FIONAROT/SCHWAR | 1 | 51417884751 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/black |
S4AWA=No S4M5A=No KCSW=Yes |
|||||||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A389C6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/black Passenger's side |
S4AWA=No S4M5A=No KCSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A342F1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
S4AWA=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A2C472 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/black or Leather, Vernasca, black, gray stitching Passenger's side |
S4AWA=Yes KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A34315 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/canberra-beige |
S4AWA=No S4M5A=No KCFY=Yes |
|||||||||
| 01 | Door trim panel, front right | CANBERRABEIGE | 1 | 51415A389C4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/canberra-beige Passenger's side |
S4AWA=No S4M5A=No KCFY=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A342E7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/canberra-beige |
S4AWA=No S4M5A=No KCCY=Yes |
|||||||||
| 01 | Door trim panel, front right | CANBERRABEIGE | 1 | 51415A389C2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec/canberra-beige Passenger's side |
S4AWA=No S4M5A=No KCCY=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A342E5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Leather Merino tartufo Passenger's side |
S4AWA=No S4M5A=No VATQ=Yes |
|||||||||
| 01 | Door trim panel, front left | TARTUFO | 1 | 51417884747 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
S4AWA=Yes KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Door trim panel right | COGNAC | 1 | 51415A2C482 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching Passenger's side |
S4AWA=Yes KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Door trim panel left | COGNAC | 1 | 51415A35C03 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Fabric sensatec./ black |
S4AWA=No S4M5A=No KFSW=Yes |
|||||||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51415A11B66 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Fabric sensatec./ black Passenger's side |
S4AWA=No S4M5A=No KFSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A342C1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching |
S4AWA=No S4M5A=No KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Door trim panel, front right | COGNAC | 1 | 51415A33A04 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/cognac, extended or Leather, Vernasca, cognac, gy stitching Passenger's side |
S4AWA=No S4M5A=No KHKC=Yes MAPQ=Yes |
|||||||||
| 01 | Door trim panel left | COGNAC | 1 | 51415A342D7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/black or Leather, Vernasca, black, gray stitching |
S4AWA=No S4M5A=No KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51415A339F4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/black or Leather, Vernasca, black, gray stitching Passenger's side |
S4AWA=No S4M5A=No KHSW=Yes MAH7=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51415A342C7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. |
S4AWA=Yes KHFR=Yes KHFY=Yes MAFO=Yes |
|||||||||
| 01 | Door trim panel right | CANBERRABEIGE | 1 | 51415A2C478 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. Passenger's side |
S4AWA=Yes KHFR=Yes KHFY=Yes MAFO=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A35BF3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. |
S4AWA=No S4M5A=No KHFR=Yes KHFY=Yes MAFO=Yes |
|||||||||
| 01 | Door trim panel, front right | CANBERRABEIGE | 1 | 51415A339E8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel 'Sensatec' and Individual leather-covered dashboard and Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige or Leath.Vernasca/Canberra beige de.stitch. Passenger's side |
S4AWA=No S4M5A=No KHFR=Yes KHFY=Yes MAFO=Yes |
|||||||||
| 01 | Door trim panel left | CANBERRABEIGE | 1 | 51415A342C3 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip with washer, natur | 26 | 07147145753 | $2.18 | Shop at ECS Tuning | |||||
| 03 | Stop buffer | 14 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
| 04 | Clamp | 1,8MM | 12 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420i Door trim panel?
- This technical diagram illustrates the Door trim panel within the Vehicle trim group for the 4 Series G22 Coupé 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel right (Part #51417883452).
- Which models use the hardware listed in this Door trim panel?
- The hardware and components featured in the Door trim panel are specific to the 4 Series G22 Coupé 420i produced during 2024. These technical specifications ensure that parts like the Door trim panel right (51417883452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel assembly?
- Each item in the Door trim panel corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420i, you can identify the Door trim panel right by locating its position on the schematic, which then links to the official BMW part number 51417883452 for the Vehicle trim section.
