Sound insulating rear for BMW 4 Series G22 Coupé 420d (2024)

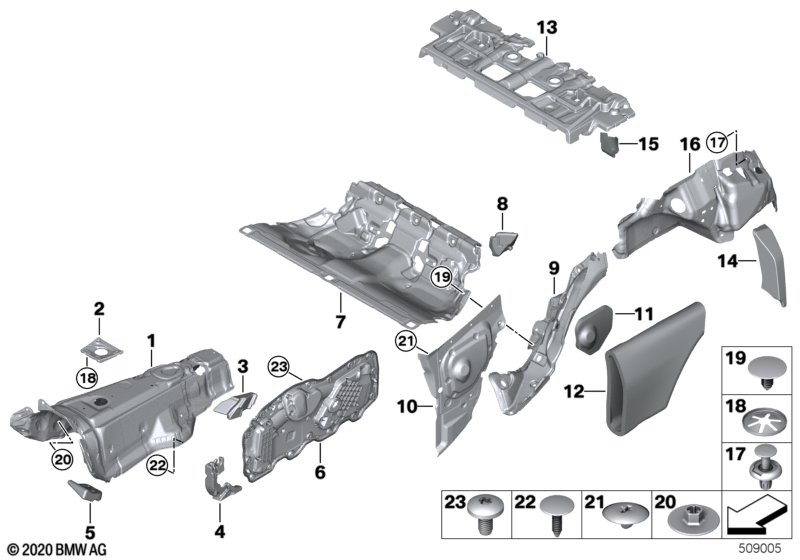

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating tunnel front | 1 | 51485B425C1 | NoS | Shop at ECS Tuning | |||||
| 02 | Sound insulation, condensation drain | 1 | 51487445272 | NoS | Shop at ECS Tuning | |||||
| 03 | Noise insulation, A-pillar, upper left | 1 | 51489495019 | NoS | Shop at ECS Tuning | |||||
| 03 | Noise insulation, A-pillar, upper right | 1 | 51489495020 | NoS | Shop at ECS Tuning | |||||
| 04 | Sound insulation, A-pillar, lower | LHD | 1 | 51487445264 | NoS | Shop at ECS Tuning | ||||
| 05 | Sound insulat., accelerator pedal mod. | LHD | 1 | 51487445266 | NoS | Shop at ECS Tuning | ||||
| 06 | Acoustic cover, left front | 1 | 51007491357 | NoS | Shop at ECS Tuning | |||||
| 06 | Acoustic cover, right front | 1 | 51007491358 | NoS | Shop at ECS Tuning | |||||
| 07 | Sound insulation floor rear | 1 | 51487491195 | NoS | Shop at ECS Tuning | |||||
| 08 | Sound insulating side member left | 1 | 51477457653 | NoS | Shop at ECS Tuning | |||||
| 08 | Sound insulating side member right | 1 | 51477457654 | NoS | Shop at ECS Tuning | |||||
| 09 | Sound insulating wheel housing rear left | 1 | 51487445269 | NoS | Shop at ECS Tuning | |||||
| 09 | Sound insulating wheel housing rear rig. | 1 | 51487445270 | NoS | Shop at ECS Tuning | |||||
| 10 | Sound insulating lateral trim panel left | 1 | 51487491165 | NoS | Shop at ECS Tuning | |||||
| 10 | Sound insulating lateral trim panelrigh | 1 | 51487491166 | NoS | Shop at ECS Tuning | |||||
| 11 | Sound insulation, lid, side section | 2 | 51487491164 | NoS | Shop at ECS Tuning | |||||
| 12 | Sound insulation, side section, outer | 2 | 51487491169 | NoS | Shop at ECS Tuning | |||||
| 13 | Sound insulation for upper partit.trunk | 1 | 51487491199 | NoS | Shop at ECS Tuning | |||||
| 14 | Sound insulation, left C-pillar | 1 | 51487489843 | NoS | Shop at ECS Tuning | |||||
| 14 | Sound insulation, right C-pillar | 1 | 51487489844 | NoS | Shop at ECS Tuning | |||||
| 15 | Noise insulation, firewall, upper left | 1 | 51487489837 | NoS | Shop at ECS Tuning | |||||
| 15 | Noise insulation, firewall, upper right | 1 | 51487489838 | NoS | Shop at ECS Tuning | |||||
| 16 | Sound insulation trunk left | 1 | 51487489839 | NoS | Shop at ECS Tuning | |||||
| 16 | Sound insulation trunk right | 1 | 51487489840 | NoS | Shop at ECS Tuning | |||||
| 17 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 18 | Axial securing clip | 5,8MM | 4 | 07147295776 | Shop at ECS Tuning | |||||
| 19 | Clip | D=30MM | 5 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 20 | Clip nut | 5X9 D=30 SW10 | 13 | 07147261260 | Shop at ECS Tuning | |||||
| 21 | Clip | 11 | 51489119216 | $0.37 | Shop at ECS Tuning | |||||
| 22 | Plug-in retainer | 1 | 07147283890 | Shop at ECS Tuning | ||||||
| 23 | Torx bolt | ISA M6X15 | 16 | 07146986937 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420d Sound insulating rear?
- This technical diagram illustrates the Sound insulating rear within the Vehicle trim group for the 4 Series G22 Coupé 420d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulating tunnel front (Part #51485B425C1).
- Which models use the hardware listed in this Sound insulating rear?
- The hardware and components featured in the Sound insulating rear are specific to the 4 Series G22 Coupé 420d produced during 2024. These technical specifications ensure that parts like the Sound insulating tunnel front (51485B425C1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating rear assembly?
- Each item in the Sound insulating rear corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420d, you can identify the Sound insulating tunnel front by locating its position on the schematic, which then links to the official BMW part number 51485B425C1 for the Vehicle trim section.
