Underfloor coating for BMW 4 Series G22 Coupé 420iX (2024)

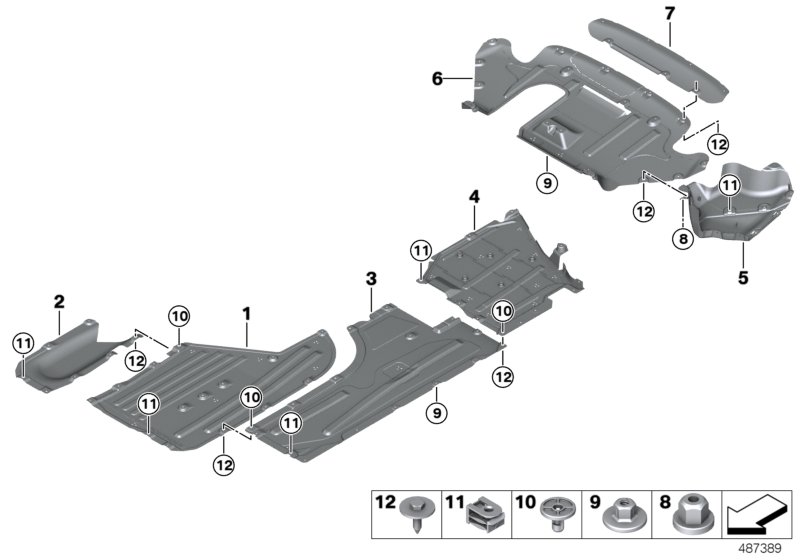

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underfloor coating center | AWD | 1 | 51757447151 | Shop at ECS Tuning | |||||
| 03 | Underbody panelling, side on left | 1 | 51757340865 | Shop at ECS Tuning | ||||||
| 03 | Underbody panelling, side on right | 1 | 51757340866 | Shop at ECS Tuning | ||||||
| 04 | Undershield for tank, right | 1 | 51757435566 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=No |
|||||||||
| 04 | Undershield for tank, left | 1 | 51757435565 | NoS | Shop at ECS Tuning | |||||
| 04 | Undershield for tank, right | 1 | 51757435566 | NoS | Shop at ECS Tuning | |||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 04 | Undershield for tank, left | 1 | 51747487477 | NoS | Shop at ECS Tuning | |||||
| 04 | Undershield for tank, right | 1 | 51747487478 | NoS | Shop at ECS Tuning | |||||
| 04 | Undershield for tank, left | 1 | 51757435569 | NoS | Shop at ECS Tuning | |||||
| 05 | Underbody panelling, rear right | 1 | 51757340868 | NoS | Shop at ECS Tuning | |||||
| ATTENTION! Part number 7340867 is replaced by part number 9477342. When using part number 9477342, the part number 9477345 (heat insulation rear muffler left) must also be ordered. |
||||||||||
| 05 | Underbody panelling, rear left | 1 | 51759477342 | NoS | Shop at ECS Tuning | |||||
| 07 | Rear diffusor | 1 | 51757439134 | Shop at ECS Tuning | ||||||
| 08 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | L= 19.9MM | 29 | 07147306224 | Shop at ECS Tuning | |||||
| 11 | C-clip for plastic nut | TS5 | 22 | 07147311312 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | TS5X20SW10 D=22 | X | 01/2021 | 07149481168 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
